Fuel System
>>
Fuel Tank Removal/Installation
>>
Joint Hose Installation Note
Joint Hose Installation Note
Install the joint hose as shown in the figure.

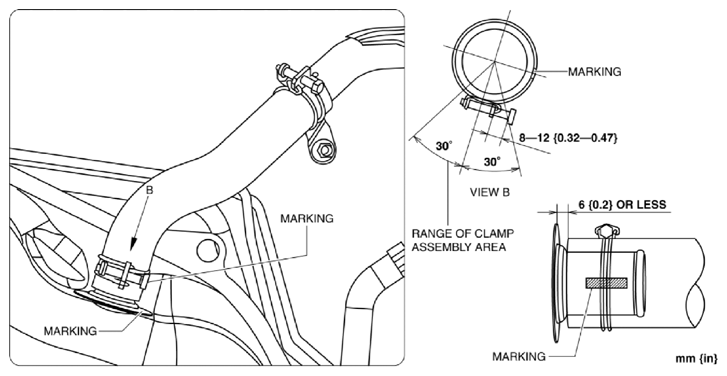

Fig 1: Installing Joint Hose (Fuel Tank Side)
Courtesy of MAZDA MOTORS CORP.

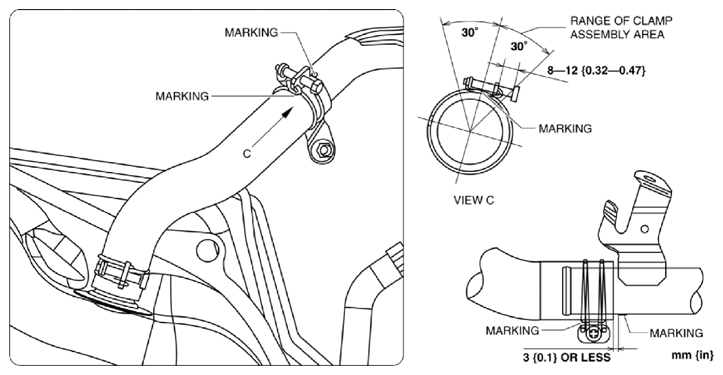

Fig 2: Installing Joint Hose (Fuel-Filler Pipe Side)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
