Troubleshooting Procedure

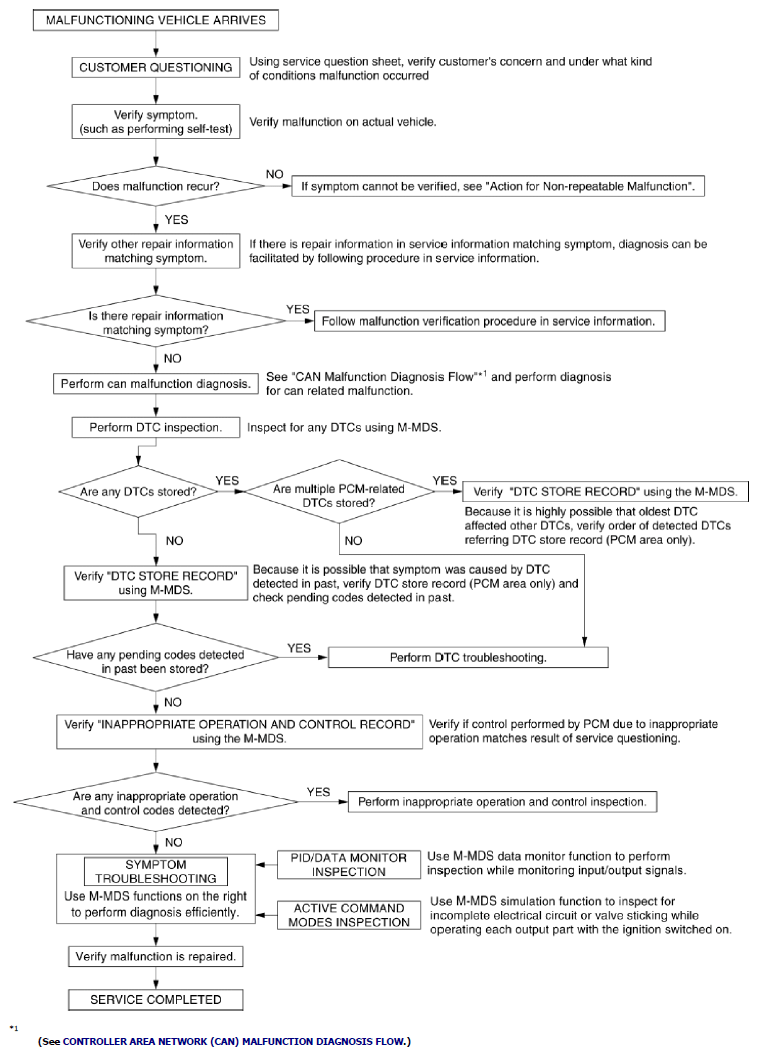

Fig 1: SKYACTIV-G 2.5 Troubleshooting Flowchart
G10984860Courtesy of MAZDA MOTORS CORP.
