Front Power Window Motor Installation Note

• If the front power window motor is installed without securing the front power window regulator drum housing, the drum housing may detach from the front door module panel and the front power window motor may not install correctly. When installing the front power window motor, insert your hand through the front door speaker installation hole and secure the drum housing so that the clip shown in the figure does not detach.

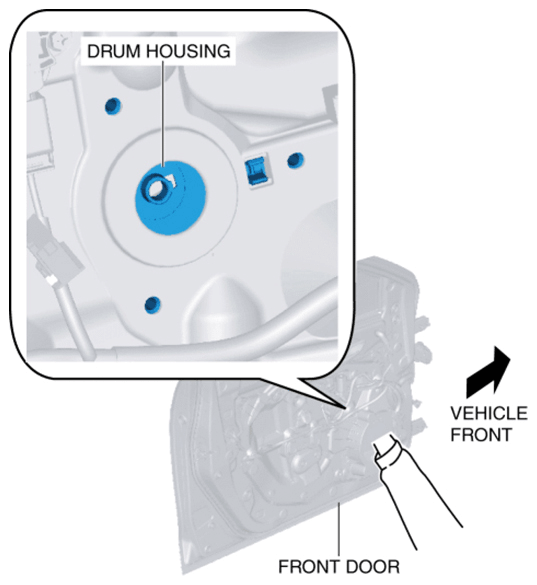

  Fig 1: Securing Drum Housing

  Courtesy of MAZDA MOTORS CORP.
• When installing the front power window motor installation bolts, tighten the bolts in the order shown in the figure.

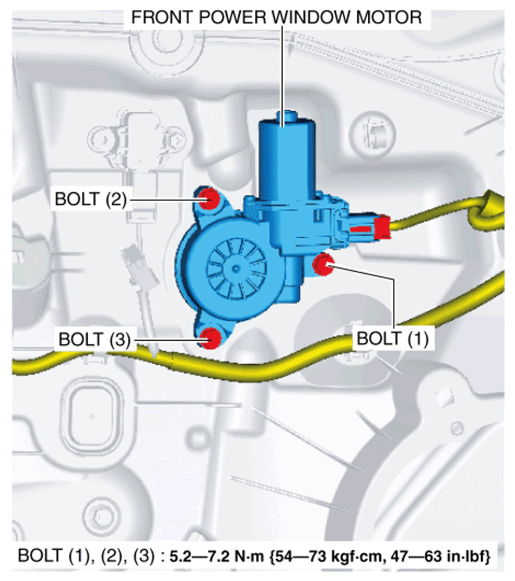

Fig 2: Identifying Front Power Window Motor And Bolts With Torque Specification

Courtesy of MAZDA MOTORS CORP.
