Power Window Main Switch Removal/Installation

NOTE:
  • The power window main switch is integrated with the power outer mirror switch.
  1. Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Affix the protective tape to the position shown in the figure to prevent scratches and damage.

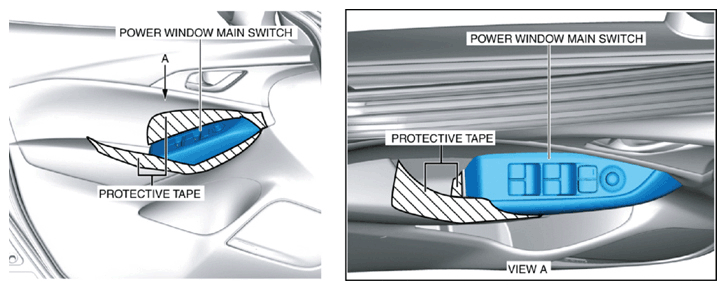

    Fig 1: Applying Protective Tape To Power Window Main Switch
    G10914155Courtesy of MAZDA MOTORS CORP.
    CAUTION:
    • When detaching the tabs, move the remover tool gradually. If the remover tool is moved too extensively, the welded area of the power window main switch panel could be damaged.

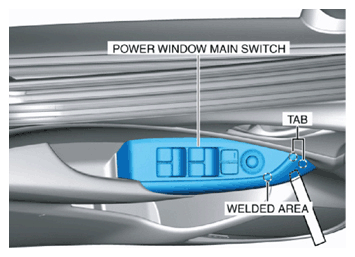

      Fig 2: Removing Power Window Main Switch Tabs
      G10914156Courtesy of MAZDA MOTORS CORP.
  3. Insert the remover tool into the position shown in the figure.
    Fig 3: Inserting Remover Tool Into Power Window Main Switch
    G10914157Courtesy of MAZDA MOTORS CORP.
  4. Move the remover tool in the direction of the arrow shown in the figure and detach the tab.
  5. While pulling the power window main switch in the direction of arrow (1) shown in the figure, press the front door trim in the direction of arrows (2) and detach the tabs.

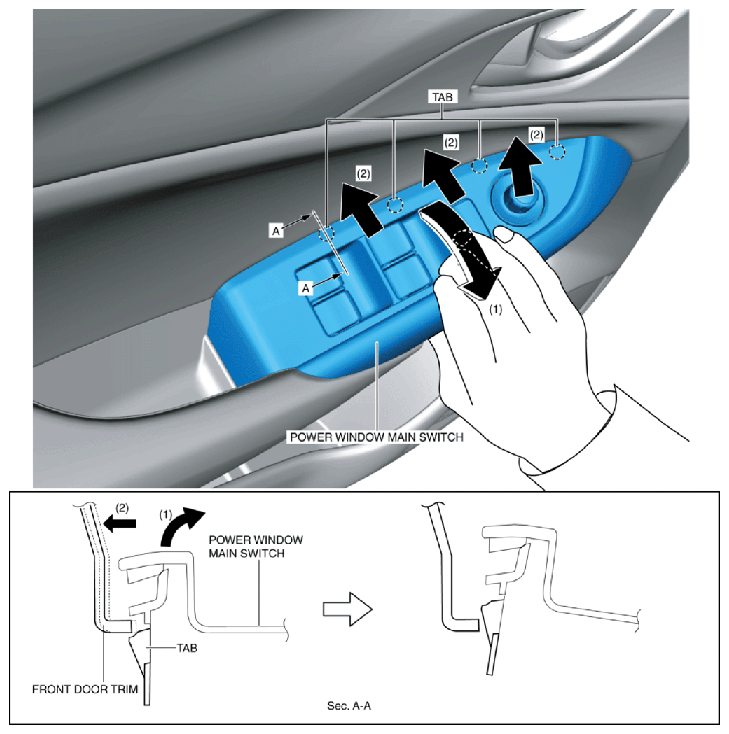

    Fig 4: Pressing Front Door Trim
    G10914158Courtesy of MAZDA MOTORS CORP.

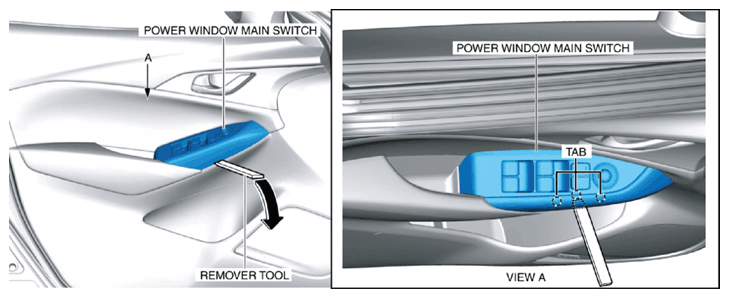

  6. Insert the remover tool into the position shown in the figure.
    Fig 5: Inserting Remover Tool Into Power Window Main Switch
    G10914159Courtesy of MAZDA MOTORS CORP.
  7. Move the remover tool in the direction of the arrow shown in the figure and detach the tabs.
  8. Insert the remover tool into the position shown in the figure.

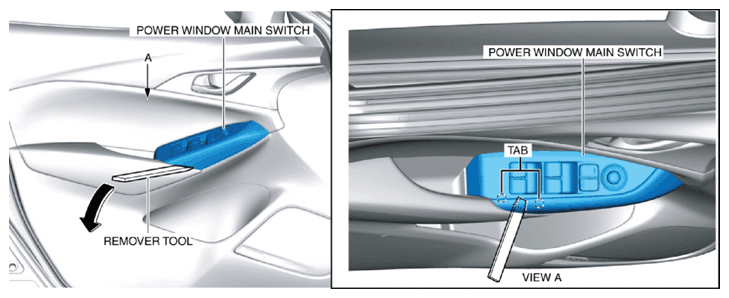

    Fig 6: Removing Power Window Main Switch Tabs
    G10914160Courtesy of MAZDA MOTORS CORP.
  9. Move the remover tool in the direction of the arrow shown in the figure and detach the tabs.
  10. Insert the remover tool into the position shown in the figure.

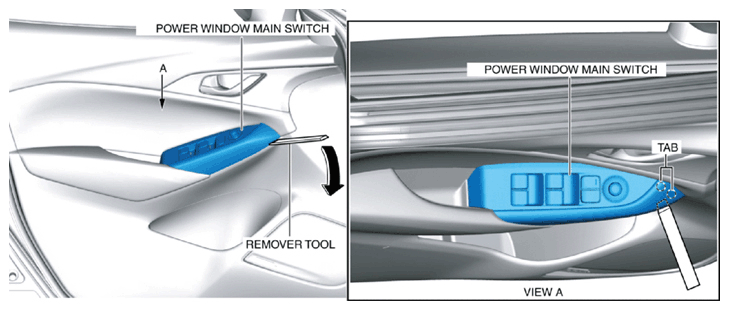

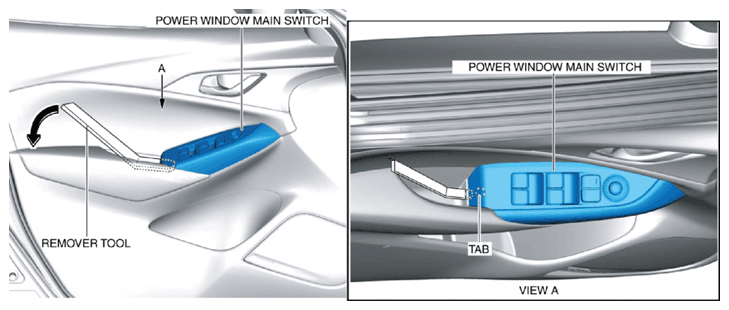

    Fig 7: Inserting Remover Tool Into Power Window Main Switch
    G10914161Courtesy of MAZDA MOTORS CORP.
  11. Move the remover tool in the direction of the arrow shown in the figure and detach the tab.
  12. Disconnect the connectors.

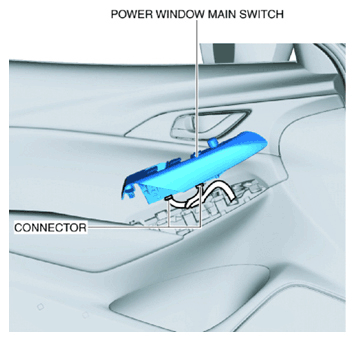

    Fig 8: Identifying Power Window Main Switch And Connector
    G10914162Courtesy of MAZDA MOTORS CORP.
  13. Detach the tabs and remove the power window main switch from the power window main switch panel.

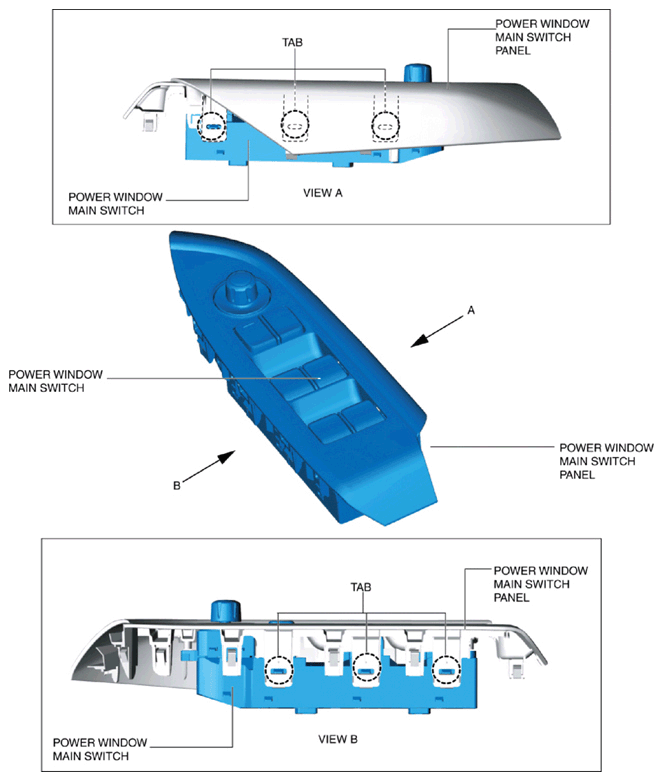

    Fig 9: Identifying Power Window Main Switch, Power Window Main Switch Panel And Tabs
    G10914163Courtesy of MAZDA MOTORS CORP.
  14. Install in the reverse order of removal.
