Rear Power Window Motor Removal/Installation: Notes

Fully lower the rear door glass.
CAUTION:
- If the rear power window motor is removed with the rear door glass fully closed, the rear door glass may fall off and be damaged.
NOTE:
- If the rear door glass cannot be fully opened by operating the power window subswitch, remove the rear power window motor while inserting your hand through the rear door speaker installation hole to support the rear door glass.
Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the power window subswitch. (rear) (Refer to POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION .)
Remove the rear door trim. (Refer to REAR DOOR TRIM REMOVAL/INSTALLATION .)
Remove the service hole cover.

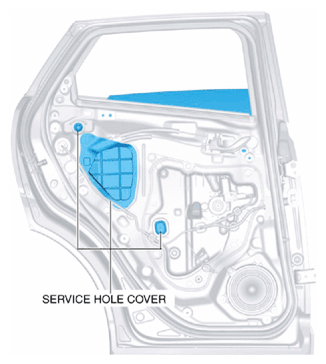

Fig 1: Identifying Service Hole Cover
Courtesy of MAZDA MOTORS CORP.
Disconnect the connector.

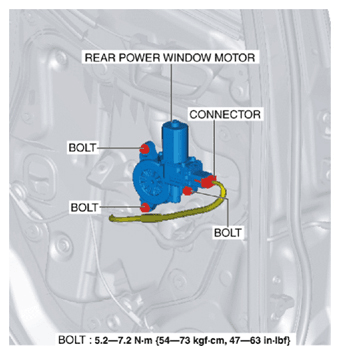

Fig 2: Identifying Rear Power Window Motor, Connector And Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Remove the bolts.
Remove the rear power window motor.
Install in the reverse order of removal. (Refer to Rear Power Window Motor Installation Note .)
