Sensor Cover Removal/Installation

  1. Pull cover A in the direction of the arrow shown in the figure and detach tab A of cover A and cover B.

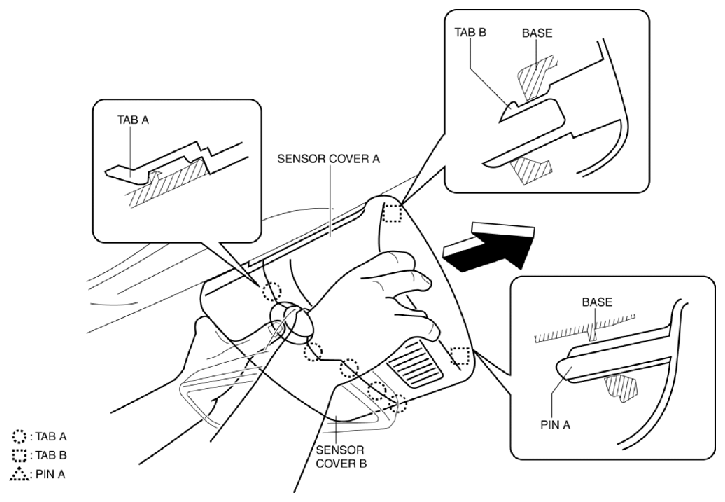

    Fig 1: Pulling Cover A
    G10914116Courtesy of MAZDA MOTORS CORP.
  2. Pull cover A in the direction of the arrow shown in the figure, detach the tab B and pin A for cover A and the base, and remove cover A from the base.
  3. Remove the wiring harness from the hook.

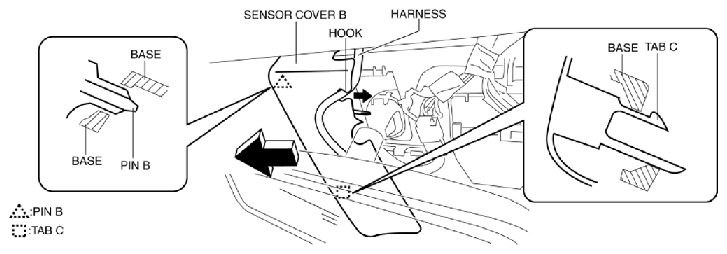

    Fig 2: Removing Wiring Harness From Hook
    G10914117Courtesy of MAZDA MOTORS CORP.
  4. Pull cover B in the direction of the arrow shown in the figure, detach the tab C and pin B for cover B and the base, and remove cover B from the base.
  5. Install in the reverse order of removal.
