Brush Assembly Note

CAUTION:
  • Melt the solder quickly, otherwise the diodes (rectifier) and regulator will be damaged by excessive heat.

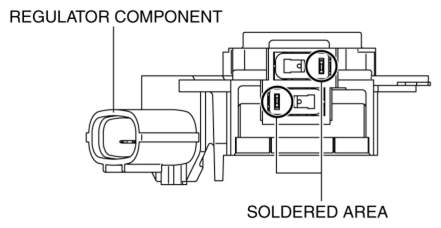

Fig 1: Caution For Melting Solder
G10969015Courtesy of MAZDA MOTORS CORP.
  1. Press the brush into the regulator component with it facing in the direction shown in the figure.

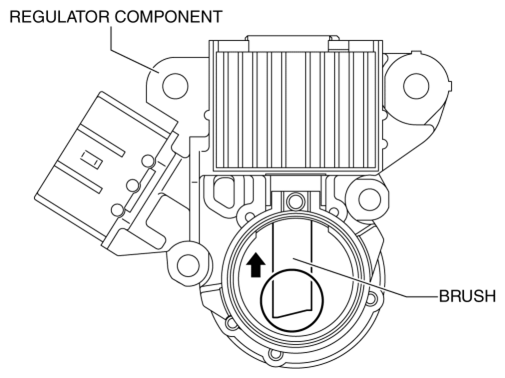

    Fig 2: Pressing Brush Into Regulator Component
    G10969016Courtesy of MAZDA MOTORS CORP.
  2. Solder the brush to the regulator component.
