Home >> Mazda >> 2016 >> CX-3 Touring, FWD >> Repair and Diagnosis >> Electrical >> Charging Systems >> Generator Disassembly/Assembly >> Brush Disassembly Note

Brush Disassembly Note

CAUTION:
  • Melt the solder quickly, otherwise the diodes (rectifier) and regulator will be damaged by excessive heat.

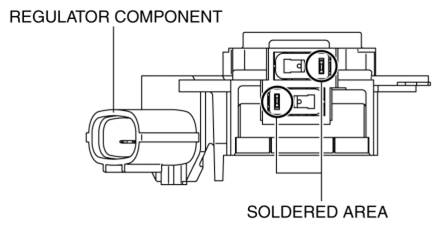

Fig 1: Caution For Melting Solder
G10969014Courtesy of MAZDA MOTORS CORP.
  1. Melt the solder and remove the brush from the regulator component.
