Generator Installation Note

To facilitate the installation of the generator to the engine, grasp the spacer in the bolt installation hole using pliers and push it down to the nut side.

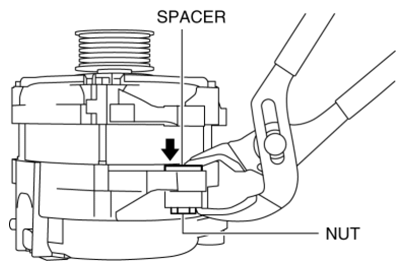

Fig 1: Installing Generator To Engine
Courtesy of MAZDA MOTORS CORP.
Temporarily install the generator to the engine with the bolt C.

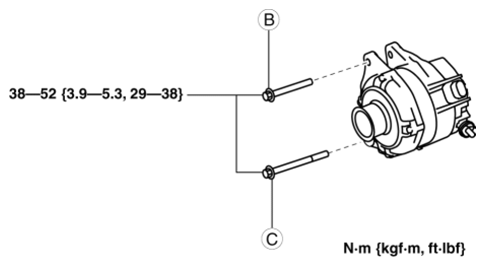

Fig 2: Identifying Engine Generator Bolts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
Align the generator fixing hole with the engine side hole, then temporarily tighten the generator installation bolt B.
Securely tighten the generator installation bolts in the order of B, C.
