Generator Removal Note
Generator Removal Note
Remove the generator from the upper side of the engine compartment.

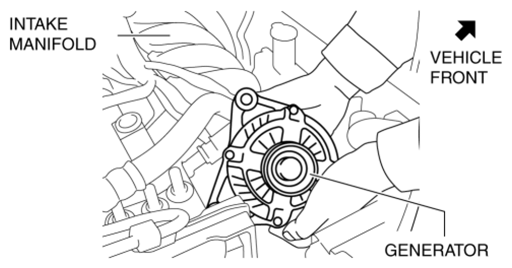

Fig 1: Removing Generator From Engine Compartment Upper Side
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
