Purge control

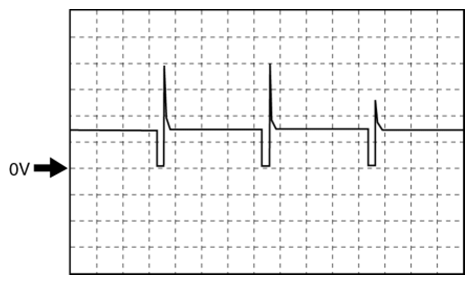

Fig 1: Purge Control Voltage Graph

Courtesy of MAZDA MOTORS CORP.

PCM terminals

• 1 AI(+)-body ground(-)

Oscilloscope setting

• 10 V/DIV (Y), 50 ms/DIV (X), DC range

Vehicle condition

• Idle after warm up
