CX-3 Touring, FWD
>>
Repair and Diagnosis
>>
Engine Performance
>>
Fuel Delivery
>>
Fuel System
>>
Fuel System Flow Diagram
Fuel System Flow Diagram

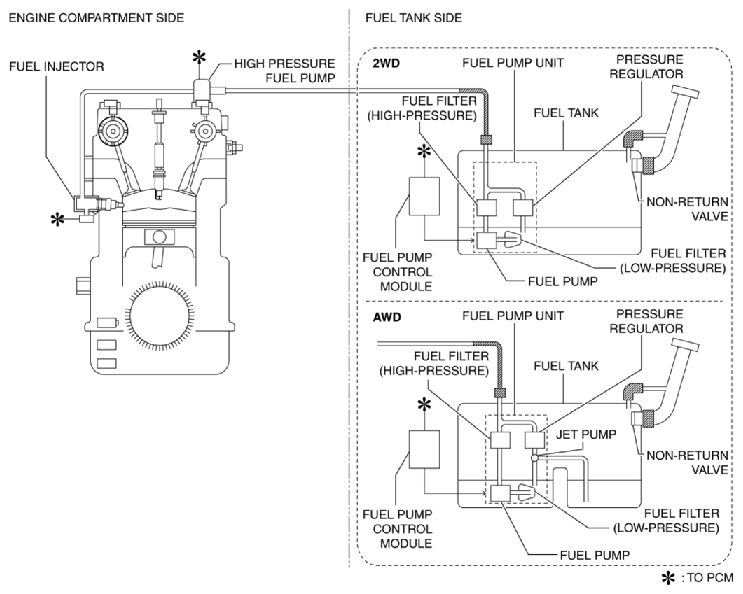

Fig 1: Fuel System Flow Diagram
