Transfer Bracket Installation Note

Install the transfer bracket to transfer, then temporarily tighten bolts A and B.

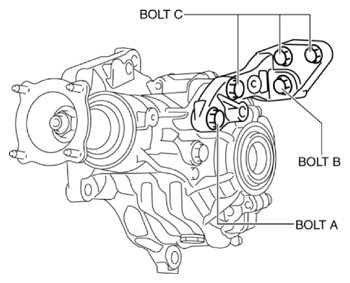

Fig 1: Transfer Bracket Bolts Tightening Sequence
Courtesy of MAZDA MOTORS CORP.
Tighten bolts B, A & C in this order.
Tightening torque
- 38-52 N.m {3.9-5.3kgf.m, 29-38 ft.lbf}
