Push Button Start Inspection

  1. Remove the push button start. (See PUSH BUTTON START REMOVAL/INSTALLATION .)
  2. Verify that the continuity between the push button start terminals is as indicated in the chart.

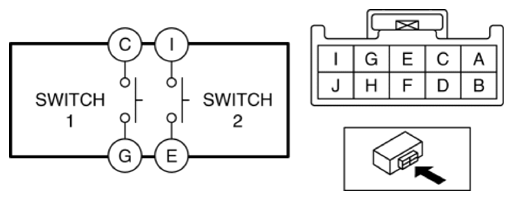

    Fig 1: Checking Continuity Between Push Button Start Terminals
    G10939666Courtesy of MAZDA MOTORS CORP.

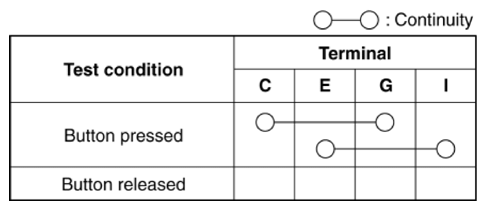

    Fig 2: Push Button Start Terminals Continuity Chart
    G10939667Courtesy of MAZDA MOTORS CORP.
    • If the continuity can be verified as indicated in the chart, go to the next step.
    • If not as indicated in the chart, replace the push button start. (See PUSH BUTTON START REMOVAL/INSTALLATION .)
  3. Apply battery positive voltage and connect the ground to the push button start terminals and verify that the LED illuminates as indicated in the chart.

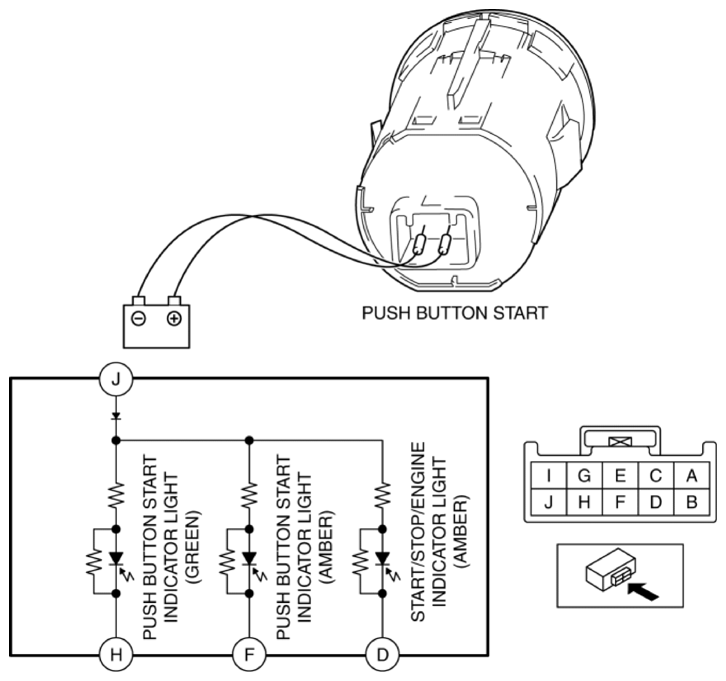

    Fig 3: Checking Voltage Between Push Button Start Terminals
    G10939668Courtesy of MAZDA MOTORS CORP.

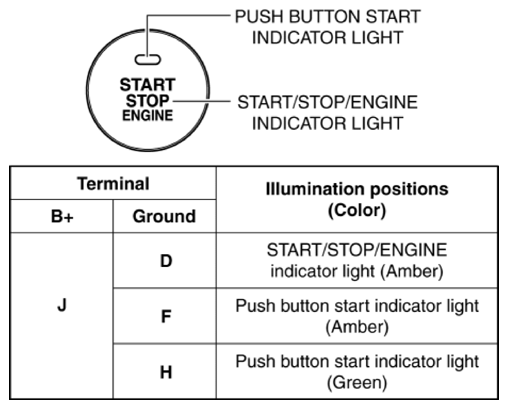

    Fig 4: Push Button Start Terminals Continuity Chart
    G10939669Courtesy of MAZDA MOTORS CORP.
