Generator Removal Note

  1. Fully loosen the generator lower bolt and pull it outward until it contacts the body frame.
    NOTE:
    • The generator can be removed without fully removing the lower bolt from the engine.
  2. Remove the generator upper bolt.
  3. Remove the generator together with the lower bolt from the engine.
  4. Remove the generator from above the engine compartment.

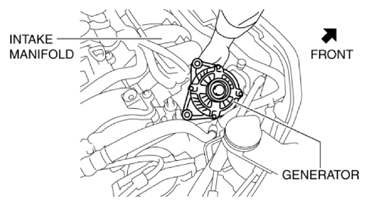

Fig 1: Identifying Intake Manifold And Generator
G10916468Courtesy of MAZDA MOTORS CORP.
