Starting System Location Index

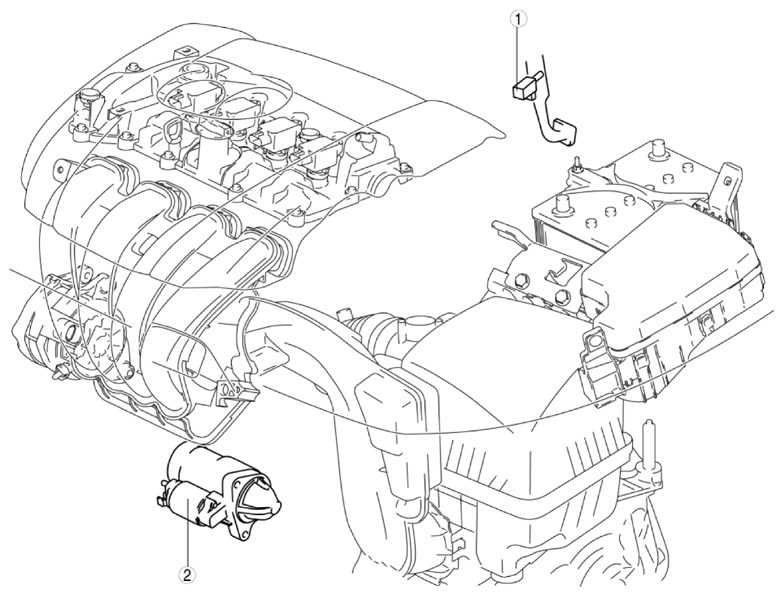

Fig 1: Starting System Related Components

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Starter interlock switch (MTX) (See STARTER INTERLOCK SWITCH INSPECTION .)
2	Starter (See STARTER REMOVAL/INSTALLATION .) (See STARTER INSPECTION .) (See STARTER DISASSEMBLY/ASSEMBLY .)
