Engine Coolant Temperature (ECT) Sensor Removal/Installation
>>
Hose Connection Note
Hose Connection Note
Align the white marks on the hose with the white marks on the pipe and connect them.

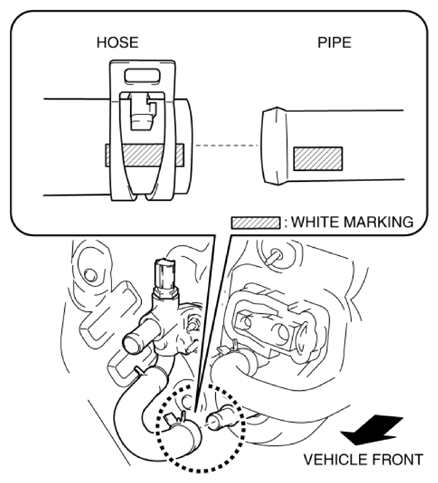

Fig 1: Identifying Marks On Hose And Pipe
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
