Home >> Mazda >> 2016 >> CX-5 Touring, FWD >> Repair and Diagnosis >> Engine Performance >> System >> Symptom Troubleshooting - Engine Controls >> Foreword >> Troubleshooting Procedure

Troubleshooting Procedure

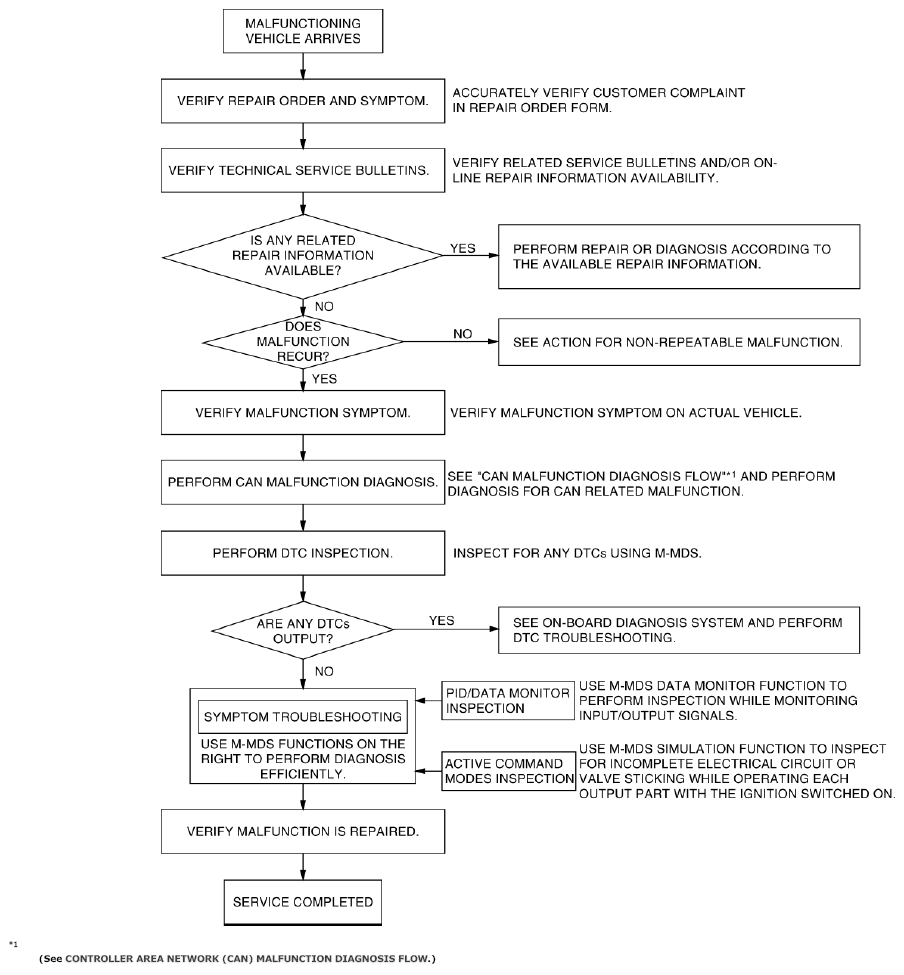

Fig 1: Troubleshooting Procedure Chart
G10915842Courtesy of MAZDA MOTORS CORP.

Repair order form

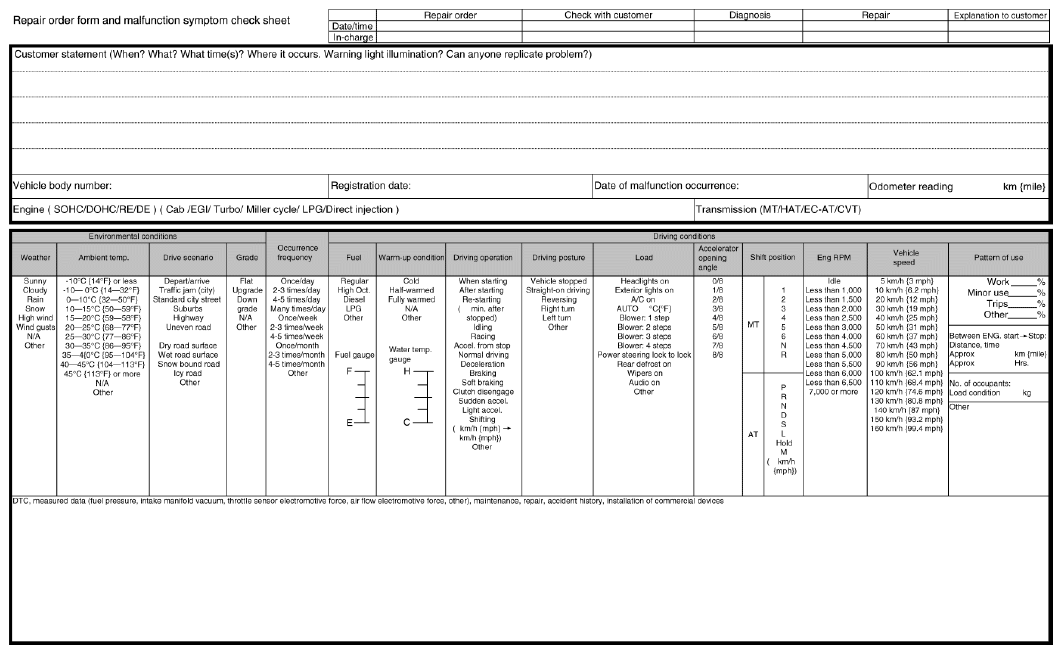

Fig 2: Repair Order Form (1 Of 2)
G10915843Courtesy of MAZDA MOTORS CORP.

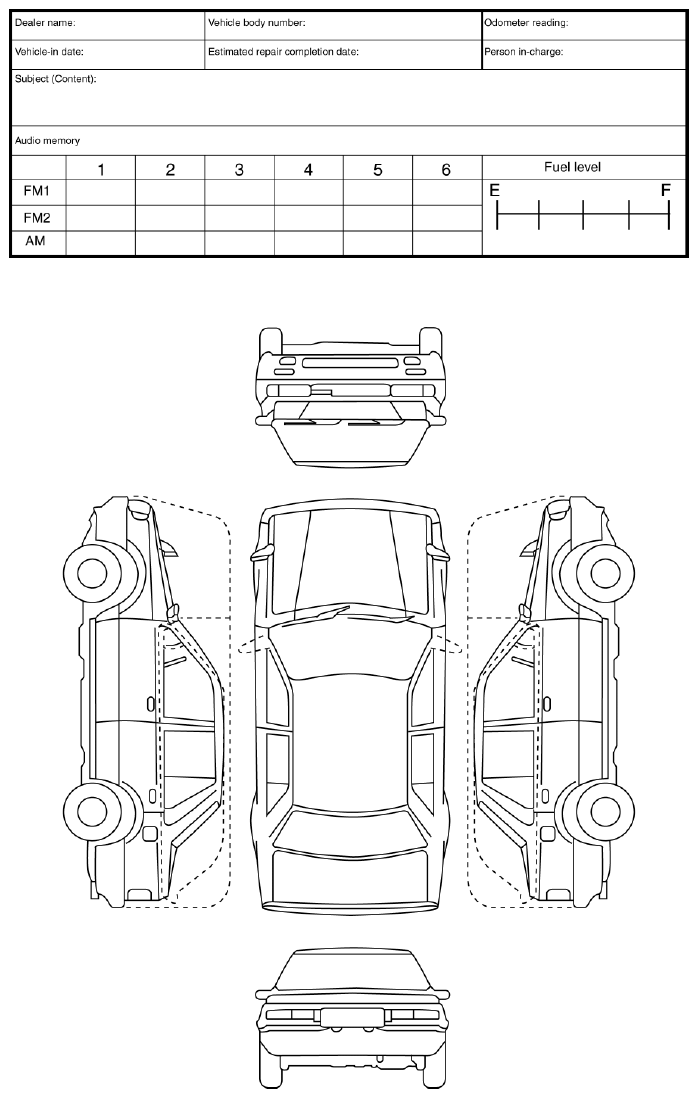

Fig 3: Repair Order Form (2 Of 2)
G10915844Courtesy of MAZDA MOTORS CORP.
