Keyless Receiver Removal/Installation

  1. Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Trunk covering (Refer to TRUNK COVERING REMOVAL/INSTALLATION .)
    2. Trunk board (Refer to TRUNK BOARD REMOVAL/INSTALLATION .)
    3. Trunk side pocket (RH) (Refer to TRUNK SIDE POCKET REMOVAL/INSTALLATION .)
    4. Trunk end trim (Refer to TRUNK END TRIM REMOVAL/INSTALLATION .)
    5. Rear scuff plate (RH) (Refer to REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    6. Third-row seat cushion (Refer to THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION .)
    7. Third-row seat back component (Refer to THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION .)
    8. Trunk side trim (RH) (Refer to TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

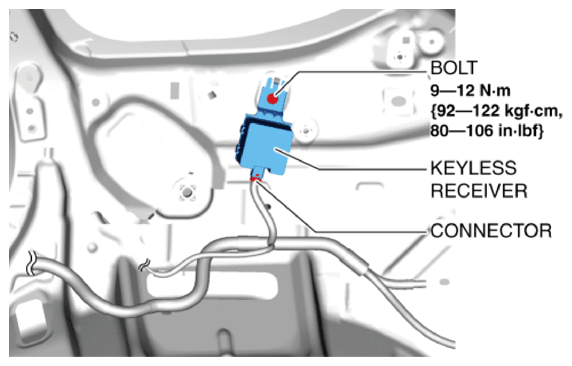

    Fig 1: Identifying Keyless Receiver, Connector And Bolt With Torque Specification
    G10949893Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolt.
  5. Remove the keyless receiver.
  6. Install in the reverse order of removal.
