Push Button Start Removal/Installation

  1. Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Glove compartment (Refer to GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    2. Passenger-side decoration panel (Refer to DECORATION PANEL REMOVAL/INSTALLATION .)
    3. Upper column cover (Refer to COLUMN COVER REMOVAL/INSTALLATION .)
    4. Driver-side decoration panel (Refer to DECORATION PANEL REMOVAL/INSTALLATION .)
    5. Meter hood No. 1 (Refer to METER HOOD REMOVAL/INSTALLATION .)
  3. While pressing the push button start tabs in the direction of the arrows (1) shown in the figure, and push out the push button start in the direction of the arrow (2) shown in the figure to detach the push button start tabs from the meter hood No. 1.

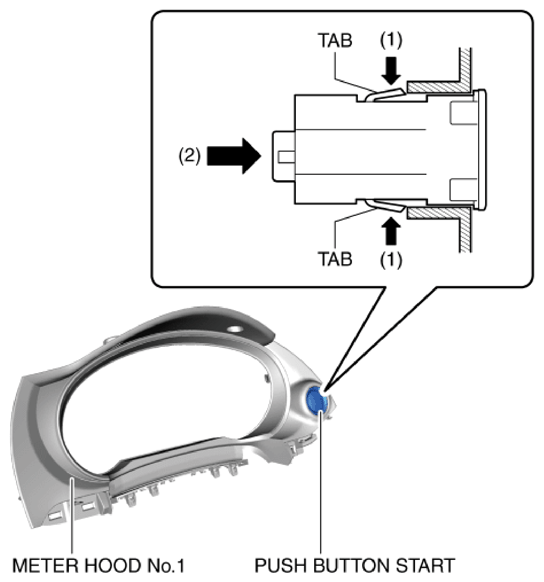

    Fig 1: Pressing Push Button Start Tabs
    G10949895Courtesy of MAZDA MOTORS CORP.
  4. Remove the push button start.

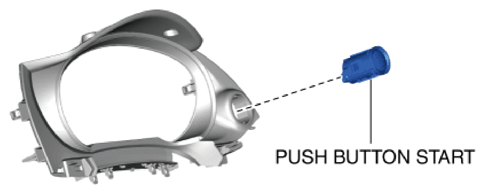

    Fig 2: Identifying Push Button Start
    G10949896Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
