Rearview Mirror Removal/Installation

  1. Loosen the screw.

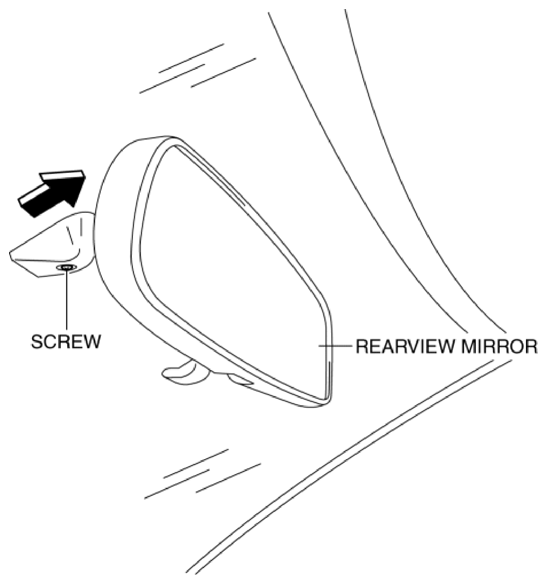

    Fig 1: Loosening Rearview Mirror Screw
    G10949637Courtesy of MAZDA MOTORS CORP.
  2. Pull the rearview mirror in the direction of the arrow shown in the figure.
  3. Install in the reverse order of removal.
