Switch Inspection

  1. Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the TCS OFF switch. (Refer to TCS OFF SWITCH REMOVAL/INSTALLATION .)
  3. Verify that the resistance between the TCS OFF switch terminals D and E is as indicated in the table.
    • If not as indicated in the table, replace the TCS OFF switch.

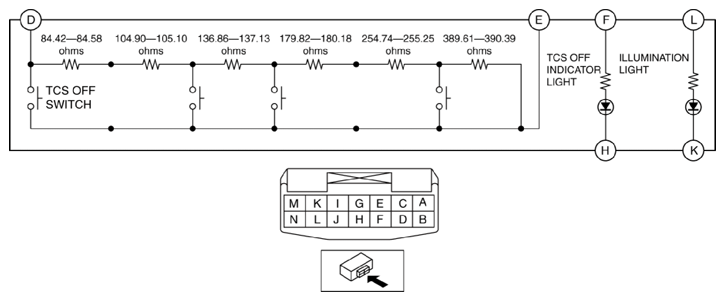

      Fig 1: TCS OFF Switch Circuit Diagram
      G10947817Courtesy of MAZDA MOTORS CORP.
    TCS OFF SWITCH SPECIFICATION

    Terminal Test condition Resistance (ohms)
    D-E TCS OFF switch pressed 0
    TCS OFF switch released 1150.35-1152.63
