Battery Tray Removal Note
- Remove the three battery tray bolts so that the battery tray is free to move.

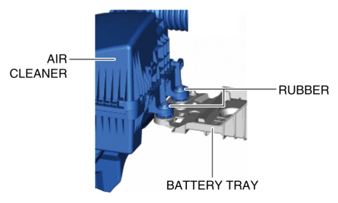

- Remove the rubber at the two locations on the air cleaner component from the battery tray.
Courtesy of MAZDA MOTORS CORP.
- Remove the battery tray.
