Brush Assembly Note

CAUTION:
  • Melt the solder quickly, otherwise the diodes (rectifier) and brush holder will be damaged by excessive heat.

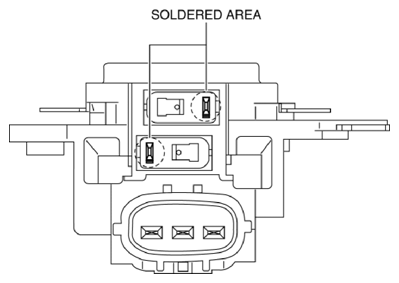

Fig 1: Identifying Generator Solder Area (Brush Assembly Note)
G10947025Courtesy of MAZDA MOTORS CORP.
  1. Press the brush into the brush holder with it facing in the direction shown in the figure.

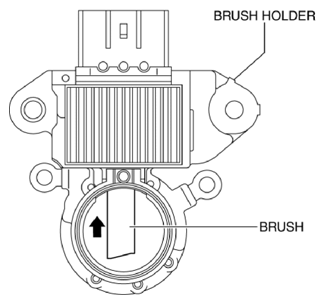

    Fig 2: Pressing Brush Into Brush Holder
    G10947026Courtesy of MAZDA MOTORS CORP.
  2. Solder the brush to the brush holder.
