Indicator Unit Removal/Installation

  1. Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Selector lever knob (Refer to AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    2. Shift panel (Refer to SHIFT PANEL REMOVAL/INSTALLATION .)
    3. Console side panel (Refer to CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
    4. Front console (Refer to FRONT CONSOLE REMOVAL/INSTALLATION .)
    5. Glove compartment (Refer to GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    6. Dashboard under cover (Refer to DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    7. Passenger-side decoration panel (Refer to DECORATION PANEL REMOVAL/INSTALLATION .)
    8. Front scuff plate (Refer to FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    9. Front side trim (Refer to FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    10. Hood release lever (Refer to HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION .)
    11. Fuel-filler lid opener lever (Refer to FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION .)
    12. Driver-side lower panel (Refer to DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)
    13. Passenger-side lower panel (Refer to PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)
  3. Pull the indicator unit outward to disconnect the clips from the climate control unit.

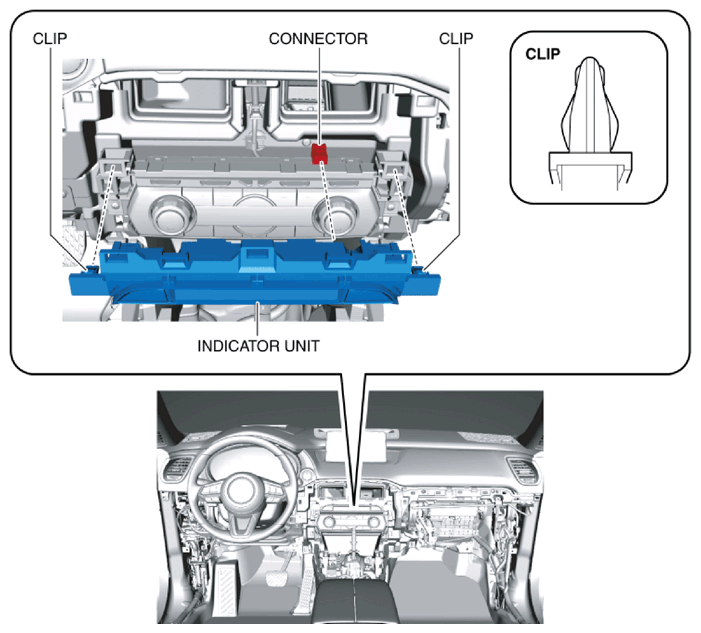

    Fig 1: Identifying Indicator Unit, Connector And Clips
    G10950903Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the connector.
  5. Remove the indicator unit.
  6. Install in the reverse order of removal.
