Parking Sensor Control Module Removal/Installation

  1. Disconnect the negative battery terminal. (Refer to NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the glove compartment. (Refer to GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

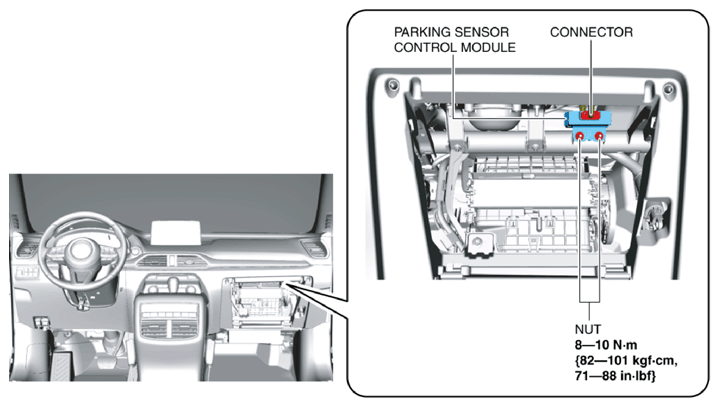

    Fig 1: Identifying Parking Sensor Control Module, Connector And Nuts With Torque Specification
    G10950895Courtesy of MAZDA MOTORS CORP.
  4. Remove the nuts.
  5. Remove the parking sensor control module.
  6. Install in the reverse order of removal.
