Troubleshooting Procedure

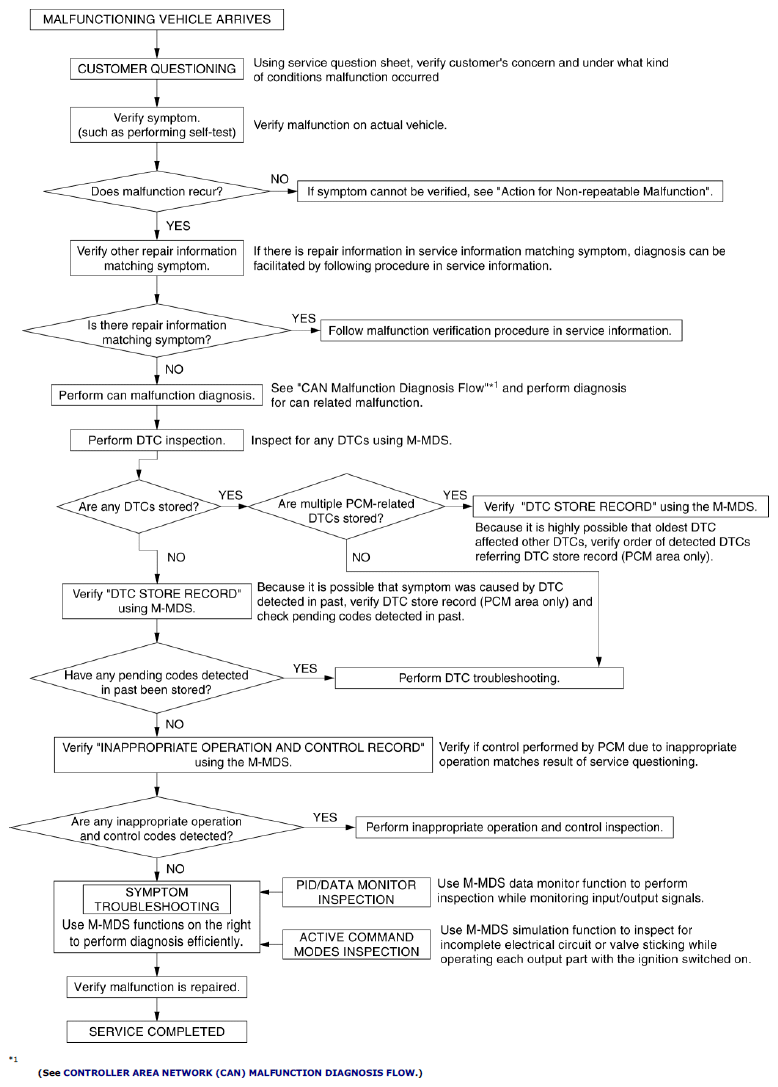

Fig 1: Malfunction Diagnosis Troubleshooting Procedure Flowchart

Courtesy of MAZDA MOTORS CORP.

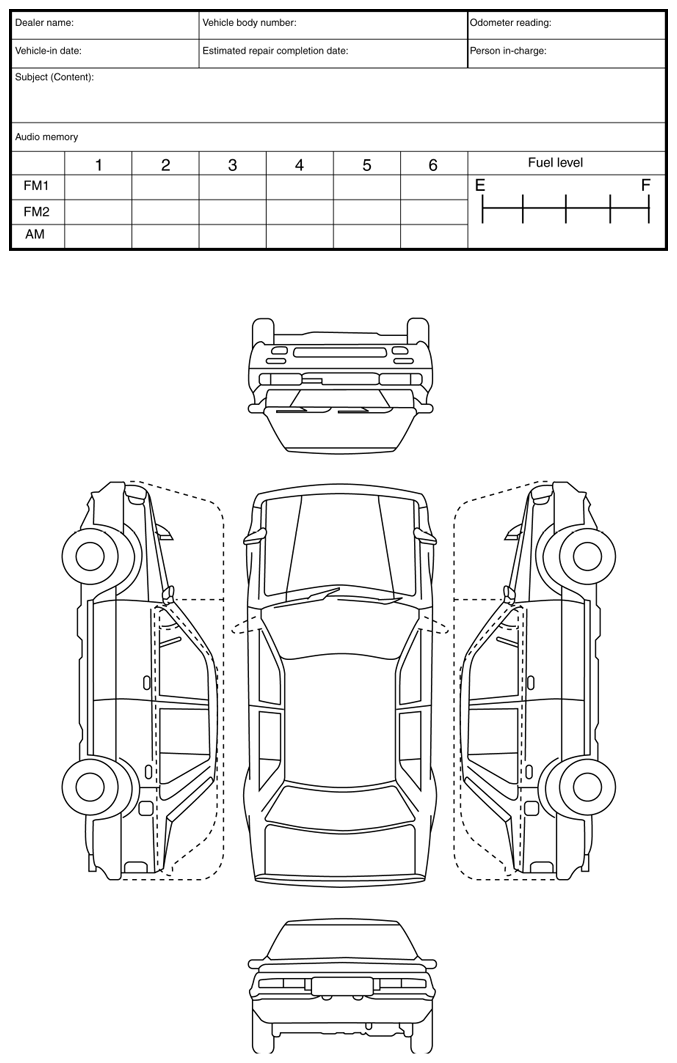

Fig 2: Repair Order Form And Malfunction Symptom Check Sheet (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

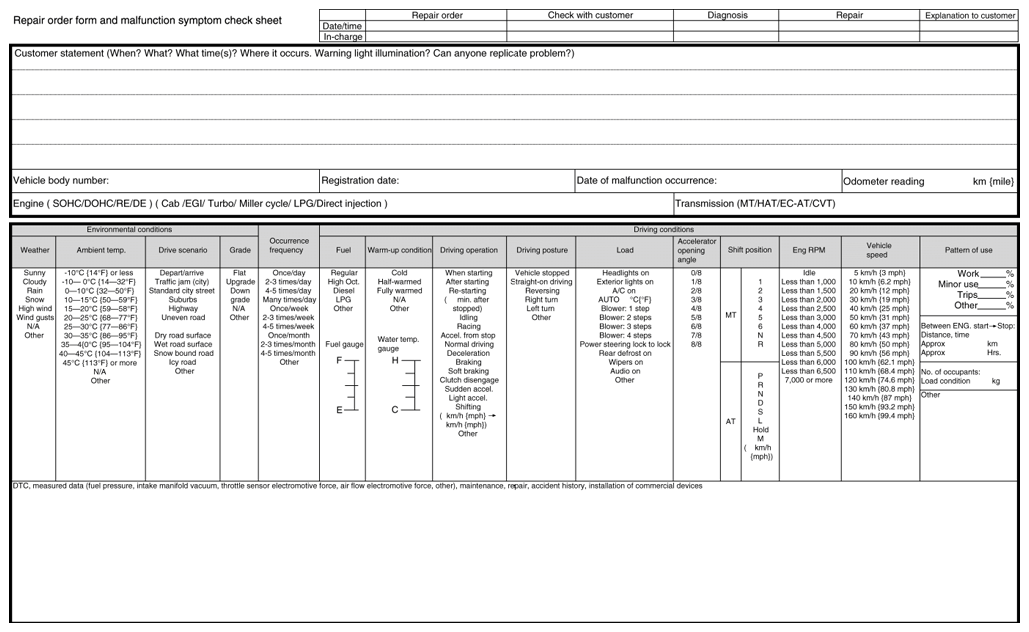

Fig 3: Repair Order Form And Malfunction Symptom Check Sheet (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
