Front CROSSMEMBER Removal/Installation: Notes

Special Service Tool (SST)

49 T028 3A0 Ball joint puller set

Courtesy of MAZDA

-

-

1. Remove the wheels and tires. (Refer to WHEEL AND TIRE REMOVAL/INSTALLATION .)
2. Remove the joint cover. (Refer to STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
3. Disconnect the intermediate shaft from the steering gear and linkage. (Refer to STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)

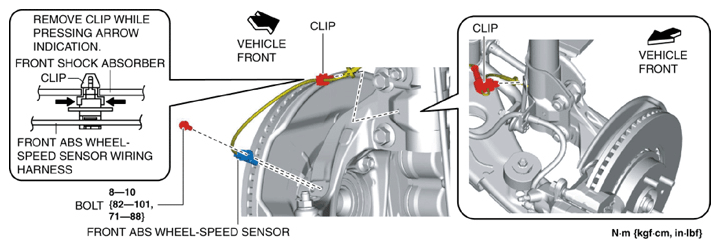

4. Disconnect the front ABS wheel-speed sensor wiring harness installed to the steering knuckle and set it aside. (Refer to FRONT ABS WHEEL-SPEED SENSOR REMOVAL/INSTALLATION .)
   Fig 1: Disconnecting Front ABS Wheel-Speed Sensor Wiring Harness To Steering Knuckle

   Courtesy of MAZDA
5. Remove the front under cover No. 2. (Refer to FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
6. Remove the front under cover No. 1. (Refer to FRONT UNDER COVER No. 1 REMOVAL/INSTALLATION .)
7. Remove the front splash shield. (Refer to FRONT SPLASH SHIELD REMOVAL/INSTALLATION .)

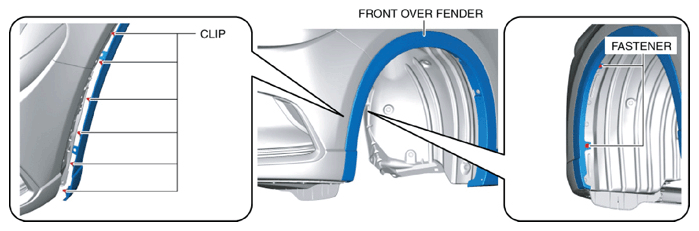

8. Remove the fasteners and clips shown in the figure and partially peel back the front over fender.
   Fig 2: Removing Front Over Fender Fasteners And Clips

   Courtesy of MAZDA

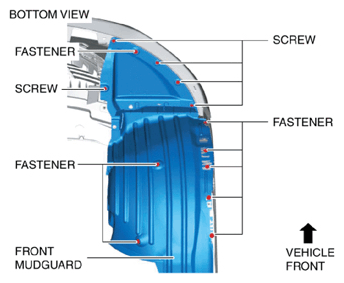

9. Remove the screws and the fasteners shown in the figure and set the front mudguard aside.
   Fig 3: Removing Front Mudguard Screws And Fasteners

   Courtesy of MAZDA

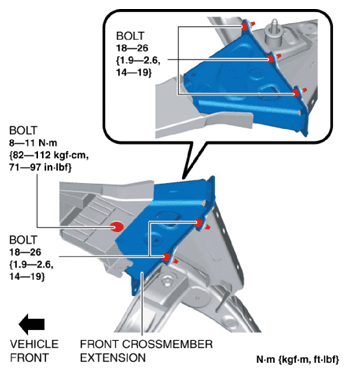

10. Remove the front crossmember extension.
    Fig 4: Removing Front Crossmember Extension

    Courtesy of MAZDA
11. Disconnect the front stabilizer control link (front stabilizer side).
    Fig 5: Disconnecting Front Stabilizer Control Link (Front Stabilizer Side)

    Courtesy of MAZDA

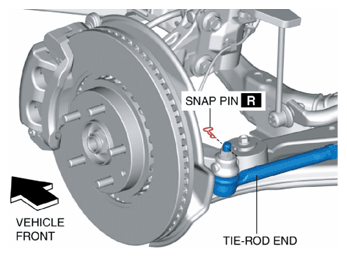

12. Remove the snap pin from the tie-rod end.
    Fig 6: Removing Snap Pin From Tie-Rod End

    Courtesy of MAZDA

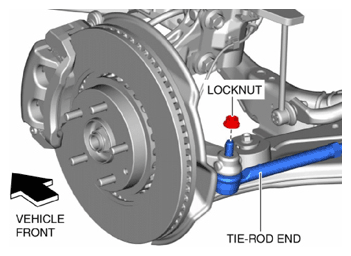

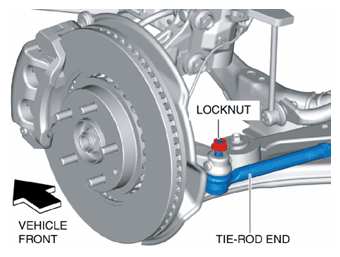

13. Loosen the locknut of the tie-rod end.
    Fig 7: Loosening Locknut Of Tie-Rod End

    Courtesy of MAZDA

    Tightening torque

    • 47-59 N.m {4.8-6.0 kgf.m, 35-43 ft.lbf}

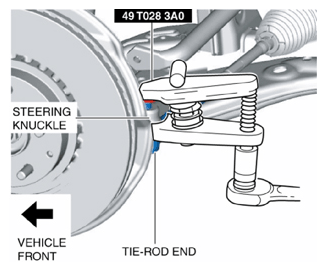

14. Using the SST  , disconnect the steering knuckle and tie-rod end.
    Fig 8: Disconnecting Steering Knuckle And Tie-Rod End

    Courtesy of MAZDA
15. Remove the locknut from the tie-rod end.
    Fig 9: Removing Locknut From Tie-Rod End

    Courtesy of MAZDA

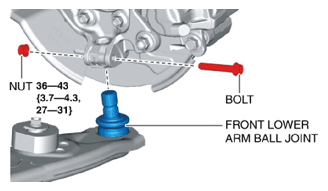

16. Disconnect the front lower arm ball joint. (Refer to FRONT LOWER ARM BALL JOINT INSTALLATION NOTE .)
    Fig 10: Disconnecting Front Lower Arm Ball Joint

    Courtesy of MAZDA
17. Remove the bracket plate (No. 1). (2WD)
    Fig 11: Removing Bracket Plate (No. 1)

    Courtesy of MAZDA

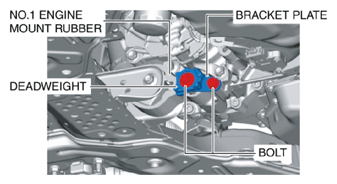

18. Remove the deadweight and bracket plate. (AWD)
    Fig 12: Removing Deadweight And Bracket Plate

    Courtesy of MAZDA

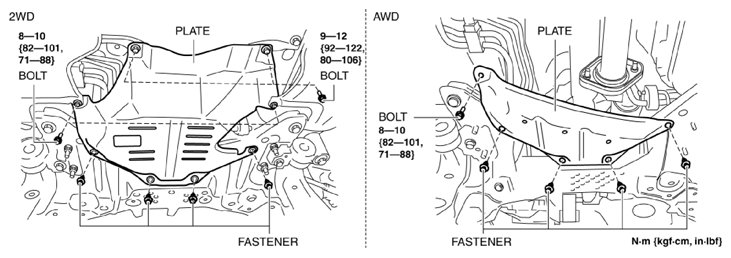

19. Remove the plate.
    Fig 13: Removing Plate

    Courtesy of MAZDA
20. Disconnect the hanger rubber from the front crossmember and set it aside.
    Fig 14: Disconnecting Hanger Rubber From Front Crossmember

    Courtesy of MAZDA
21. Remove in the order indicated in the table.
22. Install in the reverse order of removal. (Refer to SUSPENSION LINKS INSTALLATION NOTE .)
23. When replacing the front crossmember, inspect the wheel alignment and adjust it if necessary. (Refer to FRONT WHEEL ALIGNMENT .)

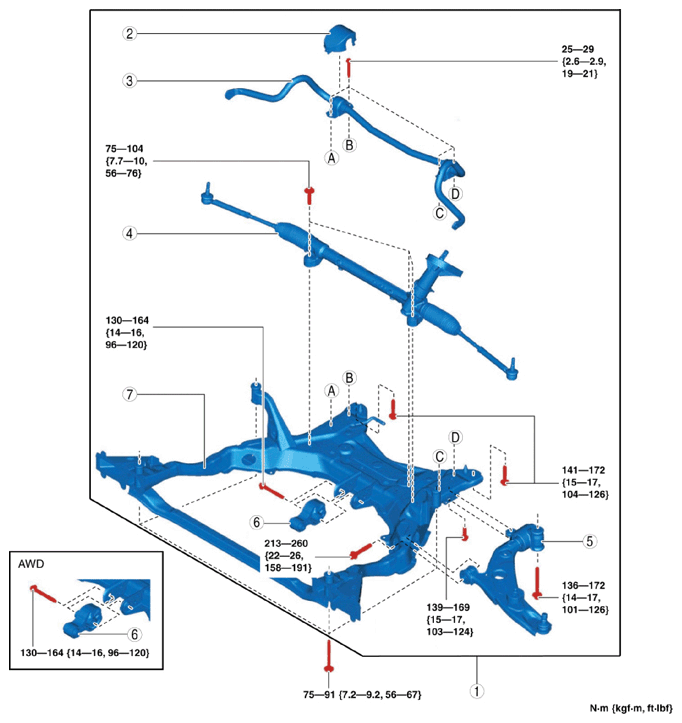

    Fig 15: Front Crossmember Components With Torque Specification

    Courtesy of MAZDA
    COMPONENT DESCRIPTION



    1	Front crossmember component (See front Crossmember Component Removal Note .) (See No. 1 Engine Mount Rubber and Front Crossmember Component Installation Note .)
    2	Front stabilizer insulator (See FRONT STABILIZER REMOVAL .) (See FRONT STABILIZER INSTALLATION .)
    3	Front stabilizer (See FRONT STABILIZER REMOVAL .) (See FRONT STABILIZER INSTALLATION .)
    4	Steering gear and linkage (See STEERING GEAR AND LINKAGE REMOVAL/INSTALLATION .)
    5	Front tower arm (See FRONT LOWER ARM REMOVAL/INSTALLATION .)
    6	No. 1 engine mount rubber (See ENGINE MOUNT DISASSEMBLY/ASSEMBLY .) (See No. 1 Engine Mount Rubber and Front Crossmember Component Installation Note .)
    7	Front crossmember
