Front Lower Arm Removal/Installation: Notes

  1. Remove the wheel and tire. (Refer to WHEEL AND TIRE REMOVAL/INSTALLATION .)
  2. Remove the front under cover No. 2. (Refer to FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal. (Refer to SUSPENSION LINK INSTALLATION NOTE .)
  5. When replacing the front lower arm, inspect the wheel alignment and adjust it if necessary. (Refer to FRONT WHEEL ALIGNMENT .)

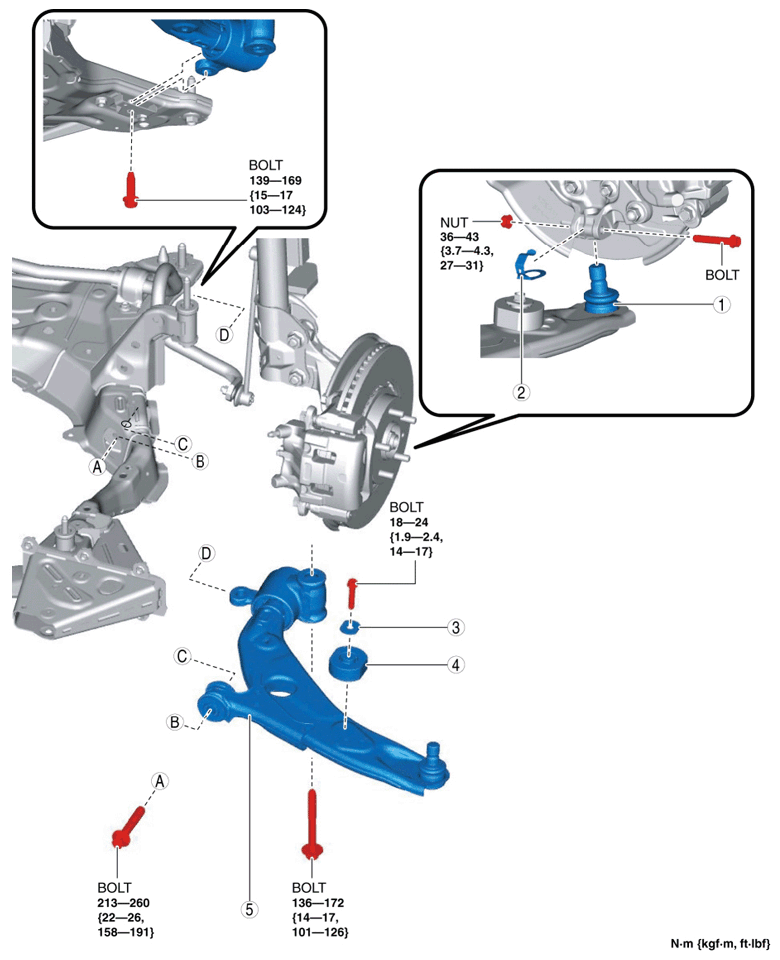

    Fig 1: Front Lower Arm Components With Torque Specification
    G10947231Courtesy of MAZDA
    COMPONENT DESCRIPTION

    1 Front lower arm ball joint
    (See Front Lower Arm Ball Joint installation Note .)
    2 Spacer
    3 Washer
    4 Dynamic damper
    (See Dynamic Damper Installation Note .)
    5 Front lower arm
