Front Shock Absorber And Coil Spring Removal/Installation: Notes

CAUTION:

Performing the following procedures could cause an open circuit in the front ABS wheel-speed sensor wiring harness if it is pulled by mistake. Before servicing, disconnect the front ABS wheel-speed sensor and set it aside so that the wiring harness will not be pulled by mistake.

Remove the wheel and tire. (Refer to WHEEL AND TIRE REMOVAL/INSTALLATION .)
Disconnect the front ABS wheel-speed sensor wiring harness installed to the steering knuckle and set it aside.

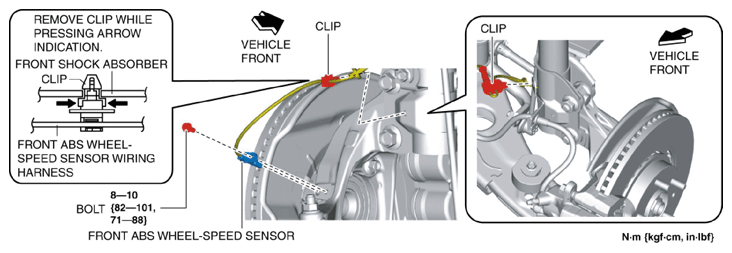

Fig 1: Disconnecting Front ABS Wheel-Speed Sensor Wiring Harness To Steering Knuckle
Courtesy of MAZDA
Remove in the order indicated in the table.
Install in the reverse order of removal.

When replacing the front shock absorber and coil spring, inspect the wheel alignment and adjust it if necessary. (Refer to FRONT WHEEL ALIGNMENT .)

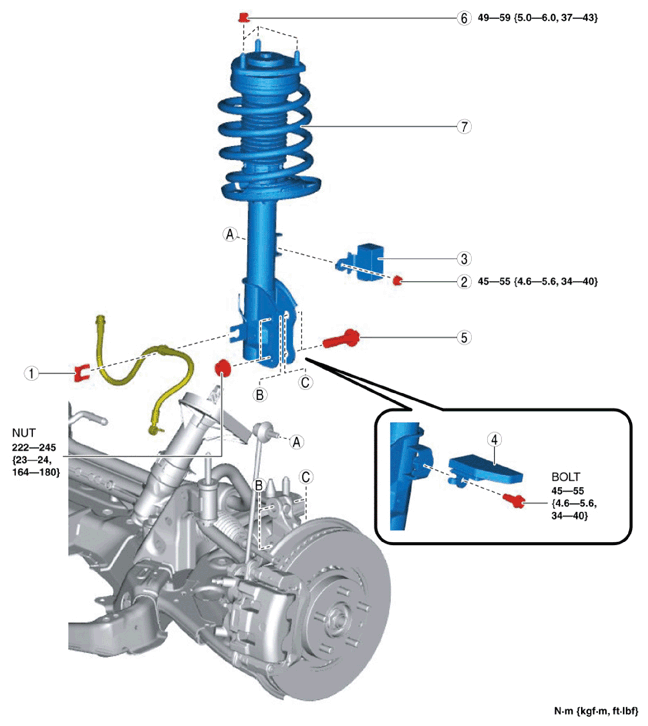

Fig 2: Front Shock Absorber Components With Torque Specification

Courtesy of MAZDA

COMPONENT DESCRIPTION

1	Front brake hose clip (See BRAKE HOSE (FRONT) REMOVAL/INSTALLATION .)
2	Front stabilizer control link upper nut
3	Dynamic damper
4	Dynamic damper
5	Front shock absorber lower bolt (See Front Shock Absorber Lower Bolt Installation Note .)
6	Front shock absorber upper nut
7	Front shock absorber and coil spring (See Front Shock Absorber and Coil Spring Installation Note .)
