Front Stabilizer Removal: Notes
CAUTION:
- Performing the following procedures could cause an open circuit in the front ABS wheel-speed sensor wiring harness if it is pulled by mistake. Before servicing, disconnect the front ABS wheel-speed sensor and set it aside so that the wiring harness will not be pulled by mistake.
- Secure the steering wheel using tape or a cable to prevent the steering shaft from rotating after disconnecting the steering shaft. If the steering wheel rotates after the steering shaft and the steering gear and linkage are disconnected, the internal parts of the clock spring could be damaged.
- Do not allow the dust boot of the front stabilizer control link to touch the body, the front shock absorber and coil spring, and the hand tool. Otherwise, the dust boot of the front stabilizer control link could be damaged.
- Remove the wheels and tires.
- Remove the joint cover. (Refer to STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)
- Disconnect the intermediate shaft from the steering gear and linkage. (Refer to STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .)

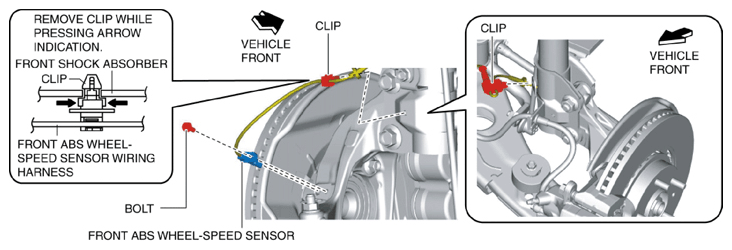

- Disconnect the front ABS wheel-speed sensor wiring harness installed to the steering knuckle and set it aside.

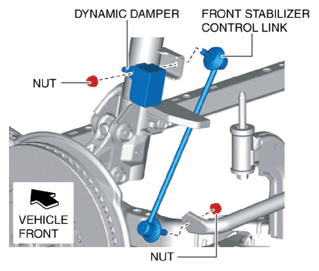

- Remove the front stabilizer control link. (Refer to FRONT STABILIZER CONTROL LINK REMOVAL NOTE .)
- Remove the front under cover No. 2. (Refer to FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
- Remove the front under cover No. 1. (Refer to FRONT UNDER COVER No. 1 REMOVAL/INSTALLATION .)
- Remove the front splash shield. (Refer to FRONT SPLASH SHIELD REMOVAL/INSTALLATION .)
- Remove the front crossmember component. (Refer to FRONT CROSSMEMBER REMOVAL/INSTALLATION .)

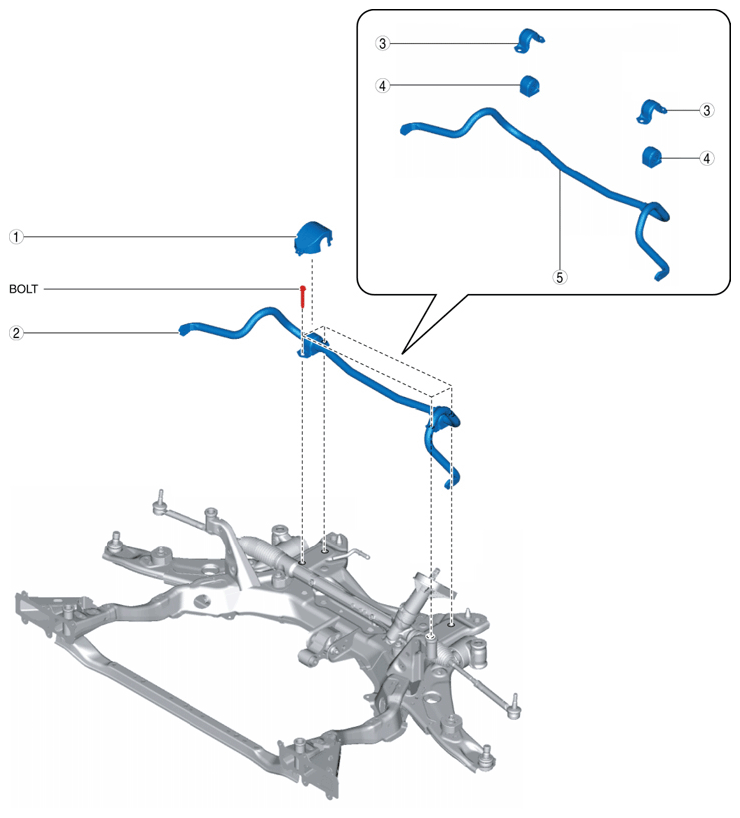

- Remove in the order indicated in the table.COMPONENT DESCRIPTION
1 Front stabilizer insulator 2 Front stabilizer component 3 Front stabilizer bracket
(See Front Stabilizer Bracket Removal Note .)4 Front stabilizer bushing 5 Front stabilizer
