Starting procedure for initial learning

  1. After the vehicle is identified, select the following items from initialization of the M-MDS.
    1. Select "Self-test"
    2. Select "Module"
    3. Select "TCM"
    4. Select "Retrieve CMDTCs"
      NOTE:
      • DTC P06B8:00 is displayed while the initial learning has not been implemented.
  2. Start the engine and wait for 30 s or more  .
  3. Perform the following steps ( 1) to ( 4) with the brake pedal depressed.

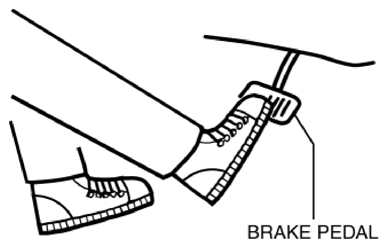

    Fig 1: Depressing Brake Pedal
    G10948104Courtesy of MAZDA
    CAUTION:
    • When the brake fluid pressure sensor value is the specification or less, shut down the initial learning to assure safety. Accordingly, be careful of the following when performing the initial learning:
      • Strongly depress the brake pedal while performing the initial learning. (Brake hydraulic pressure is 5 MPa {51 kgf/cm2 , 725 psi} or more.)
      • Do not depress the brake pedal again. Otherwise, the brake booster pressure will decrease and the brake force will weaken.
    1. Shift the selector lever from P position to D position and click the DTC clear button for the M-MDS.

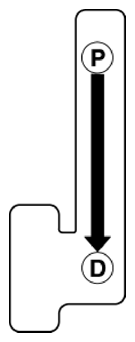

      Fig 2: Shifting Selector Lever From P Position To D Position
      G10948105Courtesy of MAZDA
    2. When the M-MDS screen returns to the DTC display screen, shift the selector lever from D position to M position within 10 s  and verify that the engine speed increases from idling.

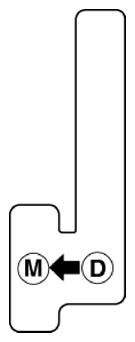

      Fig 3: Shifting Selector Lever From D Position To M Position
      G10948106Courtesy of MAZDA
      NOTE:
      • The initial learning implements after idle speed starts increasing. If idle speed does not start increasing, repeat the procedure from Step  2.
      • The shift position indication does not turn off while the initial learning is being implemented.
      • If the initial learning is shut down for any reason while performing the learning, shift position indication does not flash. If shift position indication does not flash, repeat the procedure from Step  2.
    3. Verify that the engine speed returns to idle and shift position indication flashes two times  .
      Fig 4: Identifying Shift Position Indication
      G10948107Courtesy of MAZDA
    4. Verify that M1 is displayed after the shift position indication flashes two times  , shift the selector lever to the P position, and turn off the engine.

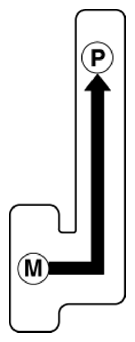

      Fig 5: Shifting Selector Lever To P Position
      G10948108Courtesy of MAZDA
      NOTE:
      • Be careful not to miss looking at shift position indication because the light flashes only one time  .
  4. Release the brake pedal.
  5. Switch the ignition to KOEO and verify the DTC.
