Transfer Oil Replacement

Remove the front under cover No. 2. (Refer to FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
Remove the drain plug with the washer.

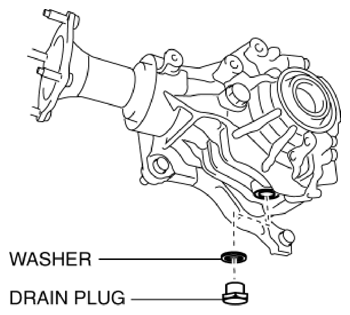

Fig 1: Identifying Drain Plug And Washer
Courtesy of MACK TRUCKS, INC.
Drain the oil into a suitable container.
Tighten the drain plug with a new washer.

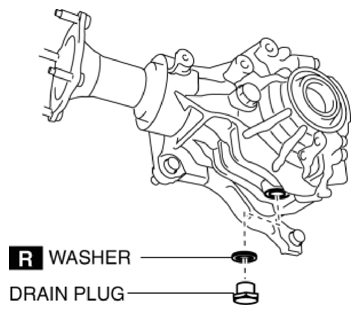

Fig 2: Identifying Drain Plug And Washer
Courtesy of MACK TRUCKS, INC.

Tightening torque
- 40-58 N.m {4.1-5.9 kgf.m, 30-42 ft.lbf}

Remove the oil level plug with the washer and add the specified amount and type of oil through the oil level plug hole until the level reaches the bottom of the oil level plug hole.

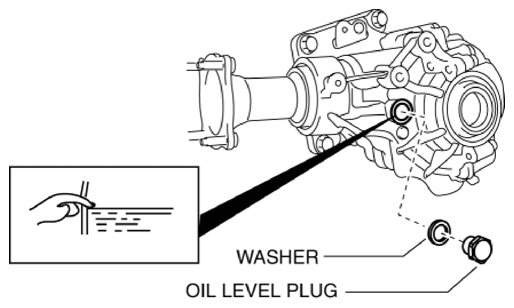

Fig 3: Checking Oil Level

G10947604

Courtesy of MACK TRUCKS, INC.

Transfer oil type	Transfer oil capacity (approx. quantity)
MAZDA LONG LIFE HYPOID GEAR OIL SG1	0.45 L {0.48 US qt, 0.40 Imp qt}

Tighten the oil level plug with a new washer.

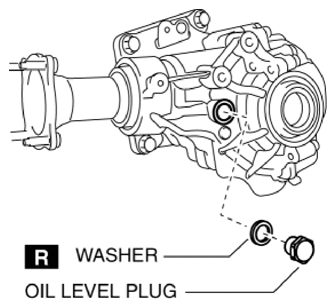

Fig 4: Identifying Oil Level Plug And Washer
Courtesy of MACK TRUCKS, INC.

Tightening torque
- 40-58 N.m {4.1-5.9 kgf.m, 30-42 ft.lbf}
Install the front under cover No. 2. (Refer to FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
