Power Window System Initialization Procedure

NOTE:
  • Initial setting must be performed after performing any of the following procedures.
    • Power window main switch is replaced
    • Power window subswitch is replaced
    • Door glass is removed
    • Power window regulator is removed
    • Power window motor is removed
  1. Close the door.
  2. Close the convertible top and secure the top lock.
  3. Switch the ignition ON. (engine on or off)
  4. Operate the power window main switch (LH) on the power window main switch to fully open the door glass (driver-side).

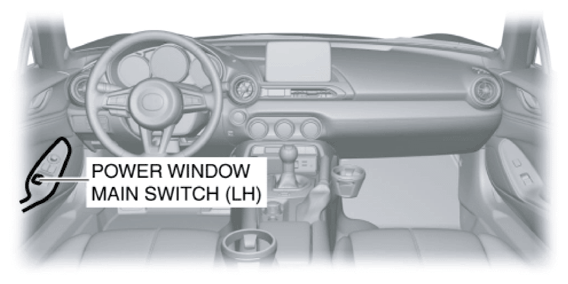

    Fig 1: Identifying Power Window Main Switch (LH)
    G10954176Courtesy of MAZDA MOTORS CORP.
  5. Operate the power window main switch (LH) on the power window main switch and keep the door glass (driver-side) fully closed for approx. 2 sec.
  6. Operate the power window main switch (RH) or the power window subswitch to fully open the door glass. (passenger-side)

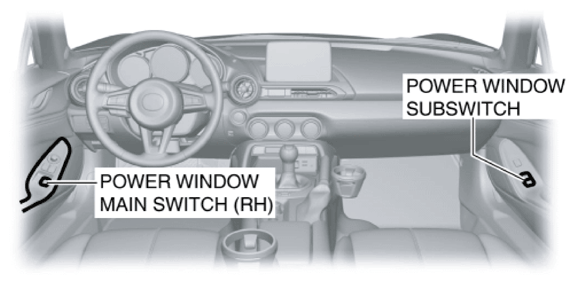

    Fig 2: Identifying Power Window Main Switch (RH)
    G10954177Courtesy of MAZDA MOTORS CORP.
  7. Operate the power window main switch (RH) or the power window subswitch and keep the door glass (passenger-side) fully closed for approx. 2 sec.
