Sensor Cover Removal/Installation

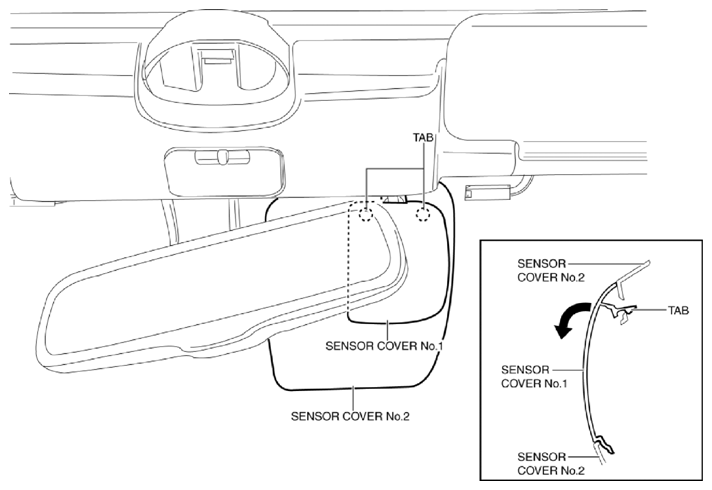

  1. Move sensor cover No. 1 in the direction of the arrow shown in the figure and detach the tabs from sensor cover No. 2.
    Fig 1: Detaching Sensor Cover Tabs
    G10954113Courtesy of MAZDA MOTORS CORP.

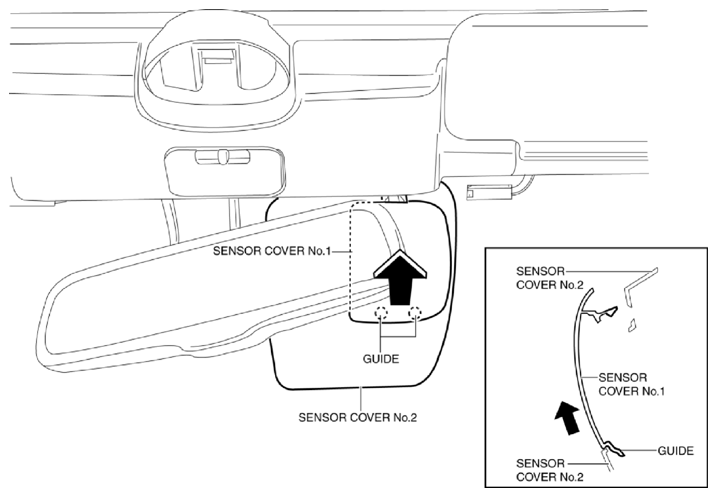

  2. Move sensor cover No. 1 in the direction of the arrow shown in the figure and remove it while detaching the guides.
    Fig 2: Detaching Sensor Cover Guides
    G10954114Courtesy of MAZDA MOTORS CORP.

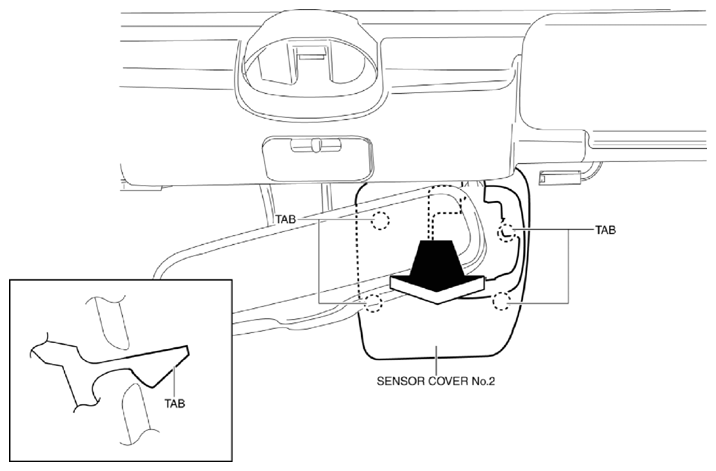

  3. Move sensor cover No. 2 in the direction of the arrow shown in the figure and remove it while detaching the tabs.
    Fig 3: Removing Sensor Cover
    G10954115Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
