Battery Removal/Installation: Notes

Install in the reverse order of removal.

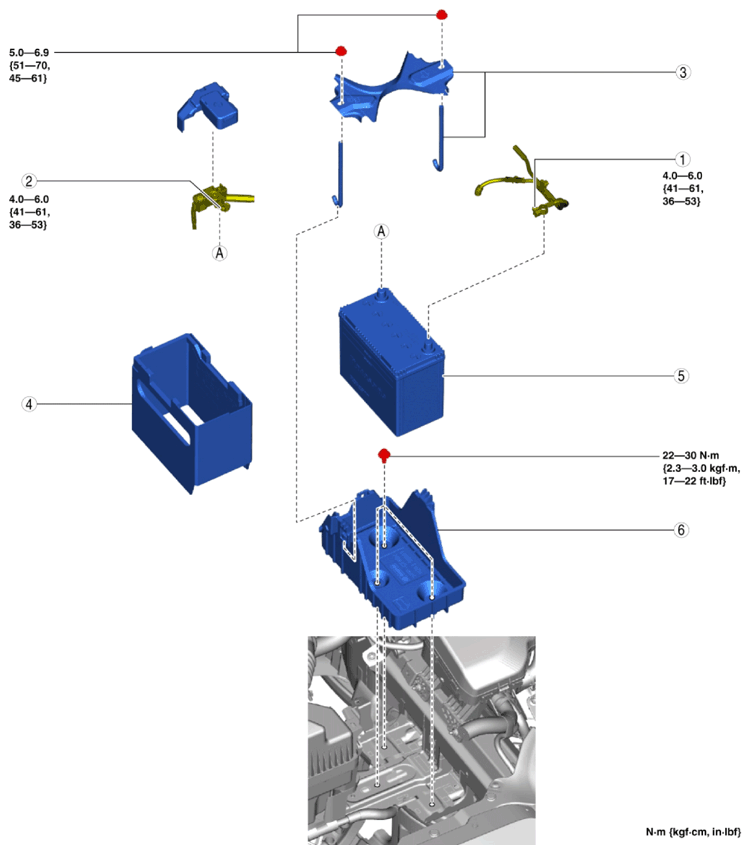

Fig 1: Battery Related Components With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Negative battery cable (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .) (See Negative Battery Cable Connection Note .)
2	Positive battery cable
3	Battery clamp (See Battery Clamp Installation Note .)
4	Battery box (See Battery Box Installation Note .)
5	Battery
6	Battery tray (See Battery Tray Removal Note .) (See Battery Tray Installation Note .)
