Brush Assembly Note

CAUTION:
  • Melt the solder quickly, otherwise the diodes (rectifier) and regulator will be damaged by excessive heat.

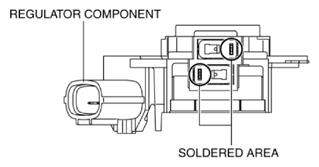

Fig 1: Identifying Regulator Component And Soldered Area (Brush Assembly)
G10951912Courtesy of MAZDA MOTORS CORP.
  1. Press the brush into the regulator component with it facing in the direction shown in the figure.

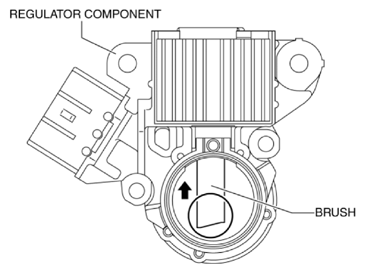

    Fig 2: Identifying Brush And Regulator Component
    G10951913Courtesy of MAZDA MOTORS CORP.
  2. Solder the brush to the regulator component.
