Generator Installation Note

To facilitate the installation of the generator to the engine, grasp the spacer in the bolt installation hole using pliers and push it down to the nut side.

Fig 1: Pushing Down Spacer Using Pliers
Courtesy of MAZDA MOTORS CORP.
Align the generator bolt installation holes on the engine and generator sides.
Set the wiring harness bracket to the installation position.
Temporarily tighten the generator bolts (upper and lower).
Tighten the generator bolts in the order shown in the figure.

Fig 2: Generator Bolts Tightening Sequence
Courtesy of MAZDA MOTORS CORP.

Tightening torque
- 38-52 N.m {3.9-5.3 kgf.m, 29-38 ft.lbf}
Connect the A/C compressor connector.

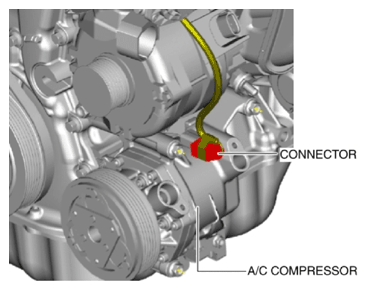

Fig 3: Identifying A/C Compressor Connector

Courtesy of MAZDA MOTORS CORP.
