Generator Removal Note

  1. Disconnect the A/C compressor connector.

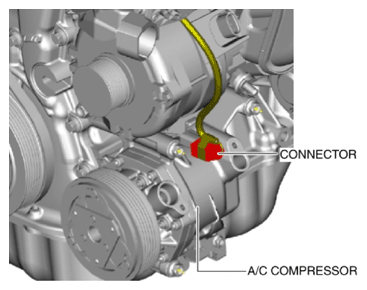

    Fig 1: Identifying A/C Compressor Connector
    G10951895Courtesy of MAZDA MOTORS CORP.
  2. Remove the generator upper bolt.
  3. Remove the wiring harness bracket.
  4. Remove the generator lower bolt.
  5. Remove the generator.

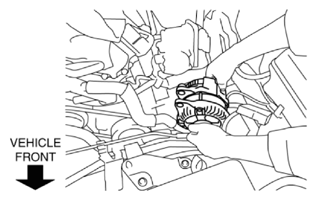

Fig 2: Removing Generator
G10951896Courtesy of MAZDA MOTORS CORP.
