Ignition Coil/Ion Sensor Removal/Installation

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the seal cover. (See SEAL COVER REMOVAL/INSTALLATION .)
Remove the front suspension tower bar (joint). (With front suspension tower bar) (See FRONT SUSPENSION TOWER BAR REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.
Install in the reverse order of removal.

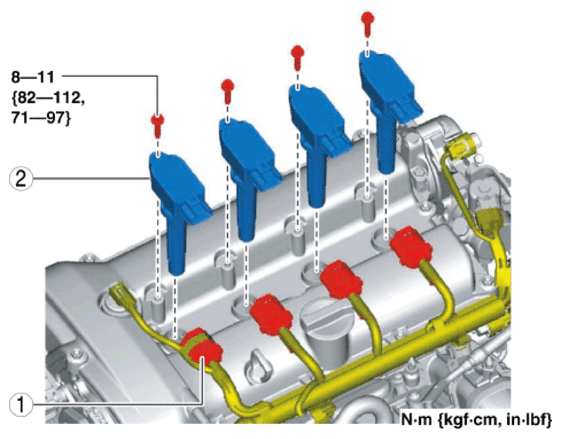

Fig 1: Identifying Ignition Coil/Ion Sensor, Connector And Bolts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Connector

2 Ignition coil/ion sensor

1	Connector
2	Ignition coil/ion sensor
