Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Pcm Inspection
>>
Without Using the M-MDS
>>
Inspection Using An Oscilloscope (Reference)
>>

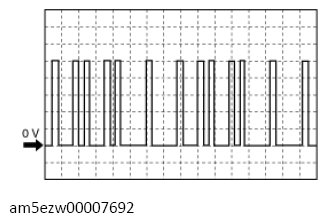

CMP signal
CMP signal
Courtesy of MAZDA MOTORS CORP.
PCM terminals
2S (+)-body ground (-)
Oscilloscope setting
1 V/DIV (Y), 25 ms/DIV (X), DC range
Vehicle condition
idle (after warm up)
Courtesy of MAZDA MOTORS CORP.
