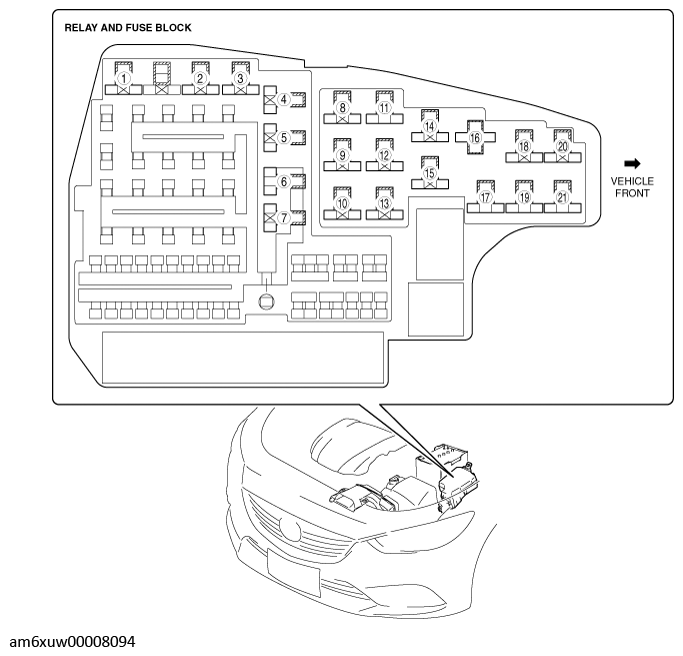

Relay Location
RELAY AND FUSE BOX RELAY IDENTIFICATION
| Relay Number | Relay Description |
|---|---|
| 1 | TNS relay |
| 2 | A/C relay |
| 3 | Headlight HI relay |
| 4 | Fuel injector relay |
| 5 | Fuel pump relay |
| 6 | Headlight LO relay |
| 7 | IG1 relay |
| 8 | Starter relay |
| 9 | - |
| 10 | Horn relay |
| 11 | Brake light relay |
| 12 | ACC relay |
| 13 | Cooling fan relay No.l |
| 14 | Electric variable valve timing relay |
| 15 | Cooling fan relay No. 2 |
| 16 | Blower relay |
| 17 | DRL relay |
| 18 | Rear window defogger relay |
| 19 | Cooling fan relay No. 3 |
| 20 | Front fog light relay |
| 21 | Main relay |
