Fuel System
>>
Fuel System Flow Diagram
Fuel System Flow Diagram

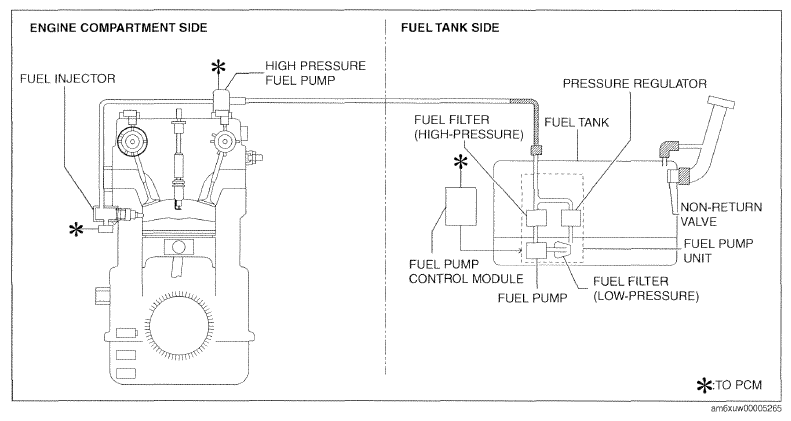

Fig 1: Fuel System Flow Diagram (Skyactiv-G 2.5)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
