Main Fuse Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. While pressing the main fuse cover hook in the direction of the arrow (1) shown in the figure using a tape-wrapped flathead screwdriver, lift up the main fuse cover in the direction of the arrow (2) to detach the main fuse cover hook from the main fuse tab.

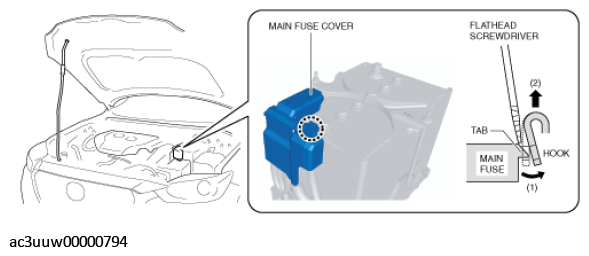

    Fig 1: Detaching Main Fuse Cover Hook From Main Fuse Tab
    G11472452Courtesy of MAZDA MOTORS CORP.
  3. Remove the main fuse cover.

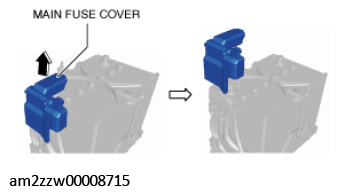

    Fig 2: Removing Main Fuse Cover
    G11472453Courtesy of MAZDA MOTORS CORP.
  4. Remove the nuts.
    Fig 3: Removing Nuts
    G11472454Courtesy of MAZDA MOTORS CORP.
  5. Remove the main fuse.
  6. Install in the reverse order of removal.
