Battery Removal/Installation: Notes

  1. Remove in the order indicated in the table.
  2. Install in the reverse order of removal.

Step 1

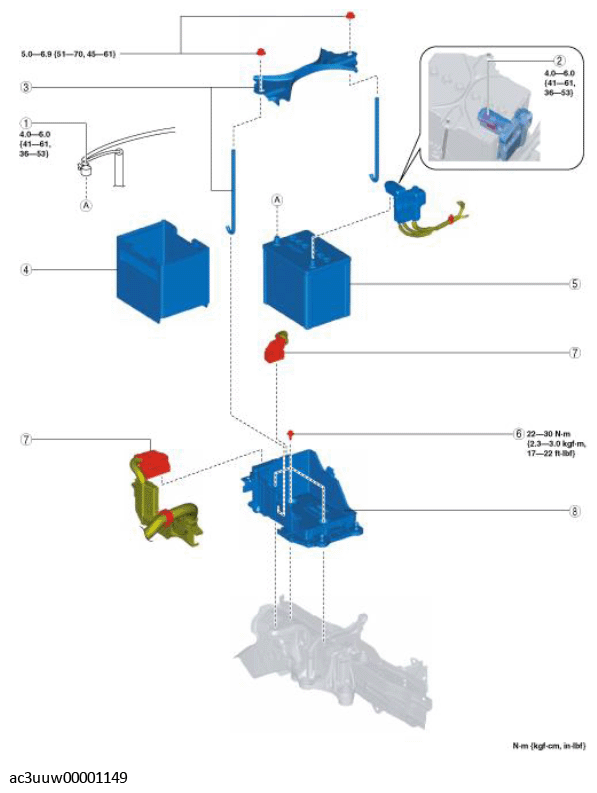

Fig 1: Battery Removal/Installation Components With Torque Specification
G11435540Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Negative battery cable
(See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
2 Positive battery cable
3 Battery clamp
4 Battery box
(See Battery Box Installation Note .)
5 Battery
6 Battery tray bolt
7 PCM connector
(See Battery Tray and PCM Component Removal Note .)
(See Battery Tray and PCM Component Installation Note .)
8 Battery tray and PCM component
(See Battery Tray and PCM Component Removal Note .)
(See Battery Tray and PCM Component Installation Note .)

Step 2

Fig 2: Battery Removal/Installation PCM With Torque Specifications
G11435542Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 PCM
(See PCM REMOVAL/INSTALLATION .)
2 Bracket A
(See Bracket A Installation Note .)
3 Bracket B
· About lemon-mirror
