Oil Pump Removal/Installation: Notes
Replacement Part
O-ring
Quantity: 1
Location of use: Oil strainer
Oil and Chemical Type
Engine oil
Type: Recommended oil
WARNING:
- Hot engines and engine oil can cause severe burns. Turn off the engine and wait until it and the engine oil have cooled.
- A vehicle that is lifted but not securely supported on safety stands is dangerous. It can slip or fall, causing death or serious injury. Never work around or under a lifted vehicle if it is not securely supported on safety stands.
- Continuous exposure to USED engine oil has caused skin cancer in laboratory mice. Protect your skin by washing with soap and water immediately after working with engine oil.
- Turn the steering wheel completely to the right.
- Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
- Remove the front splash shield (RH). (See SPLASH SHIELD REMOVAL/INSTALLATION .)
- Drain the engine oil. (See ENGINE OIL REPLACEMENT .)
- Remove the oil pan. (See OIL PAN REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- Refill with the specified type and amount of the engine oil. (See ENGINE OIL REPLACEMENT .)
- Start the engine and confirm that there is no oil leakage.
- If there is oil leakage, repair or replace the applicable part.
- Inspect the oil level. (See ENGINE OIL LEVEL INSPECTION .)
- Inspect the oil pressure. (See OIL PRESSURE INSPECTION .)
SKYACTIV-G 2.0

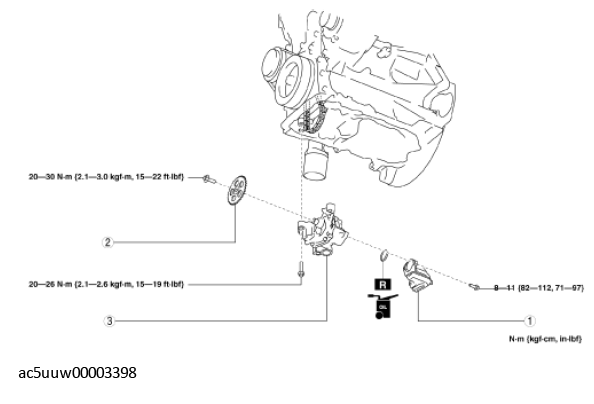

COMPONENT DESCRIPTION
| 1 | Oil strainer |
| 2 | Oil pump driven sprocket (See Oil Pump Driven Sprocket Removal Note (SKYACTIV-G 2.0) .) (See Oil Pump Driven Sprocket Installation Note (SKYACTIV-G 2.0) .) |
| 3 | Oil pump (See Oil Pump Installation Note (SKYACTIV-G 2.0) .) |
SKYACTIV-G 2.5

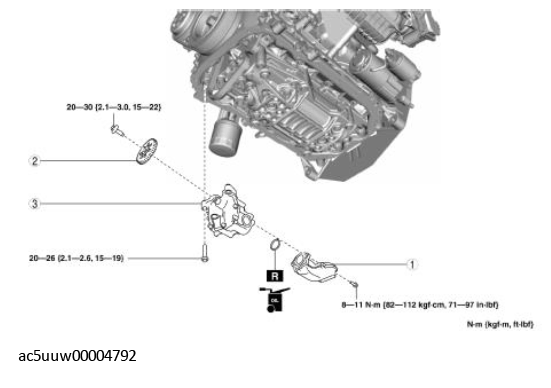

COMPONENT DESCRIPTION
| 1 | Oil strainer |
| 2 | Oil pump driven sprocket (See Oil Pump Driven Sprocket Removal Note (SKYACTIV-G 2.5) .) (See Oil Pump Driven Sprocket Installation Note (SKYACTIV-G 2.5) .) |
| 3 | Oil pump (See Oil Pump Installation Note (SKYACTIV-G 2.5) .) |
