Relay Location

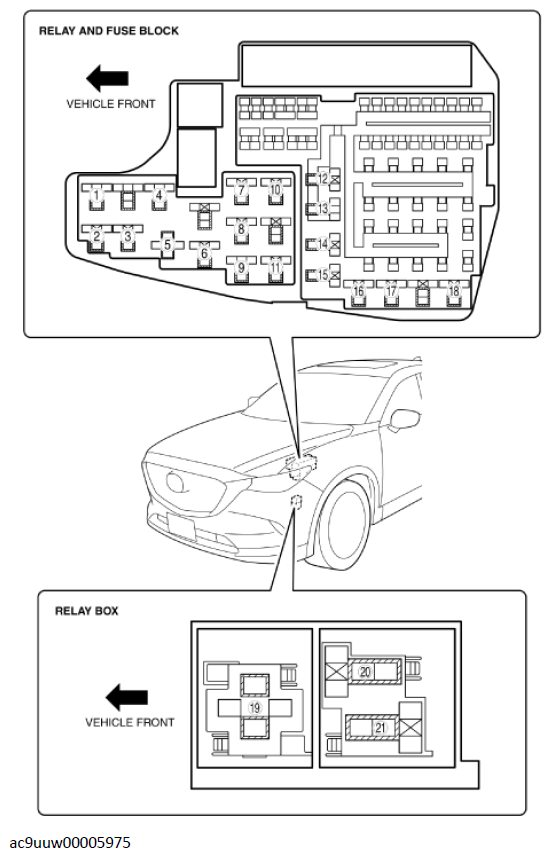

RELAY AND FUSE BOX RELAY IDENTIFICATION
| RELAY NUMBER | RELAY DESCRIPTION |
|---|---|
| 1 | Main Relay |
| 2 | Front Fog Light Relay |
| 3 | Rear Widow Defogger Relay |
| 4 | Headlight Lo Relay No. 2 |
| 5 | Front Blower Relay |
| 6 | Electric Variable Valve Timing Relay |
| 7 | Rear Blower Relay |
| 8 | ACC Relay |
| 9 | Brake Light Relay |
| 10 | DRL Relay |
| 11 | Starter Relay |
| 12 | IG1 Relay |
| 13 | Headlight Lo Relay No. 1 |
| 14 | Fuel Injector Relay |
| 15 | Fuel Pump Relay |
| 16 | Headlight Hi Relay |
| 17 | A/C Relay |
| 18 | TNS Relay |
| 19 | Cooling Fan Relay |
| 20 | Steering Warmer Relay |
| 21 | Horn Relay |
