Indicator Unit Removal/Installation

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove the following parts:
1. Selector lever knob (See AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
2. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
3. Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
4. Front console (See FRONT CONSOLE REMOVAL/INSTALLATION .)
5. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
6. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
7. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
8. Front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
9. Front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
10. Hood release lever (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION .)
11. Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION .)
12. Driver-side lower panel (See DRIVER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)
13. Passenger-side lower panel (See PASSENGER-SIDE LOWER PANEL REMOVAL/INSTALLATION .)
Pull the indicator unit outward to disconnect the clips from the climate control unit.

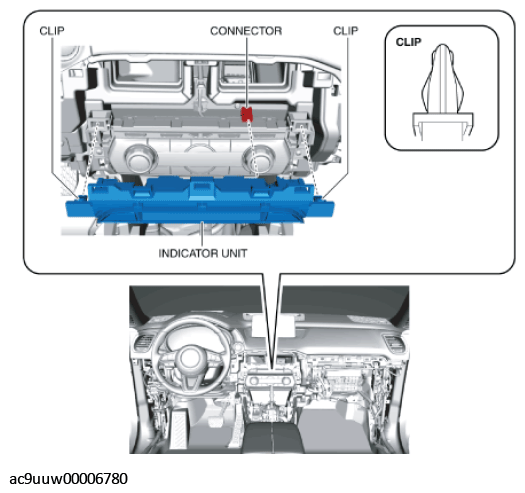

Fig 1: Indicator Unit, Connector And Clips
Courtesy of MAZDA MOTORS CORP.
Disconnect the connector.
Remove the indicator unit.
Install in the reverse order of removal.
