Parking Sensor Control Module Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

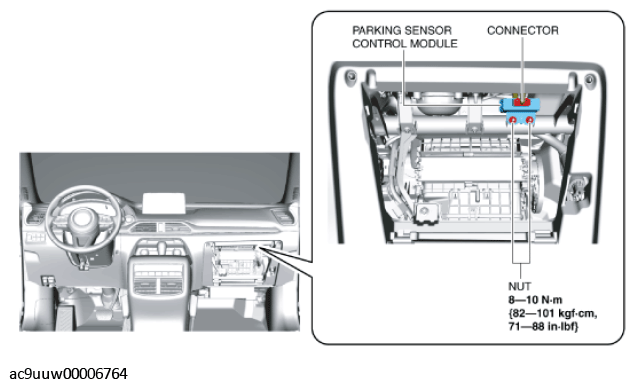

    Fig 1: Parking Sensor Control Module, Connector And Nuts With Torque Specification
    G11434833Courtesy of MAZDA MOTORS CORP.
  4. Remove the nuts.
  5. Remove the parking sensor control module.
  6. Install in the reverse order of removal.
