Third-Row Buckle Removal/Installation

  1. Remove the third-row seat cushion. (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION .)
  2. Remove the bolts.

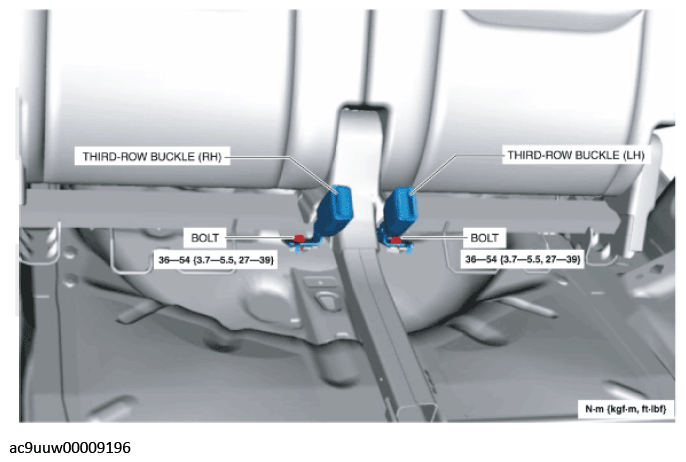

    Fig 1: Third-Row Buckle (LH And RH) Bolts With Torque Specifications
    G11438843Courtesy of MAZDA MOTORS CORP.
  3. Remove the third-row buckle (LH).
  4. Remove the third-row buckle (RH).
  5. Install in the reverse order of removal.
